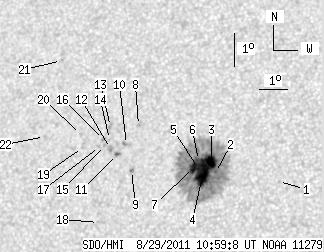

SDO HMI 2011-08-29 10:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.28 | 282.68 | 25.04 | 160.35 | 13.65 | 291.40 | -28.88 | 74.68 | 0.4885 | -429.2 | -259.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-29 10:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.27 | 0.00 | 0.15 | 13.37 | 294.40 | -25.88 | 74.12 | 0.4433 | -698.0 | -581.3 | |
| 0.90 | 258.29 | 0.50 | 146.05 | 13.52 | 292.18 | -28.10 | 74.67 | 0.4768 | -1021.3 | -349.8 | |
| 9.86 | -2.00 | 5.56 | -2.00 | 13.85 | 291.99 | -28.29 | 74.06 | 0.4805 | -1245.6 | 999999 | |
| 19.54 | -2.00 | 11.04 | -2.00 | 13.41 | 291.73 | -28.55 | 75.06 | 0.4831 | -1202.6 | 999999 | |
| 1.70 | -2.00 | 0.96 | -2.00 | 13.61 | 291.56 | -28.72 | 74.71 | 0.4861 | -1030.8 | 999999 | |
| 3.86 | -2.00 | 2.18 | -2.00 | 13.85 | 291.53 | -28.75 | 74.22 | 0.4872 | -776.4 | 999999 | |
| 6.81 | -2.00 | 3.86 | -2.00 | 13.63 | 291.38 | -28.90 | 74.73 | 0.4888 | -859.3 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.73 | 14.79 | 289.22 | -31.05 | 73.21 | 0.5230 | 770.0 | 670.7 | |
| 0.00 | 1.61 | 0.00 | 0.93 | 13.40 | 289.18 | -31.10 | 75.85 | 0.5202 | 872.0 | 718.9 | |
| 0.00 | 2.96 | 0.00 | 1.72 | 14.18 | 288.88 | -31.40 | 74.46 | 0.5263 | 817.0 | 650.7 | |
| 1.61 | 2.06 | 0.94 | 1.20 | 13.86 | 288.60 | -31.68 | 75.16 | 0.5295 | 818.6 | 704.6 | |
| 0.00 | 3.32 | 0.00 | 1.94 | 14.02 | 288.32 | -31.96 | 74.93 | 0.5339 | 821.0 | 711.7 | |
| 0.00 | 2.33 | 0.00 | 1.37 | 14.69 | 288.21 | -32.07 | 73.73 | 0.5371 | 520.0 | 466.0 | |
| 0.00 | 0.81 | 0.00 | 0.47 | 14.29 | 288.24 | -32.04 | 74.45 | 0.5357 | 588.0 | 477.4 | |
| 0.00 | 0.63 | 0.00 | 0.37 | 14.10 | 288.08 | -32.19 | 74.85 | 0.5374 | 753.0 | 740.1 | |
| 0.00 | 1.79 | 0.00 | 1.05 | 14.28 | 288.02 | -32.26 | 74.54 | 0.5388 | 725.0 | 576.0 | |
| 0.00 | 1.08 | 0.00 | 0.63 | 14.06 | 287.91 | -32.37 | 74.98 | 0.5399 | 630.0 | 531.4 | |
| 0.00 | 1.17 | 0.00 | 0.68 | 11.75 | 288.20 | -32.08 | 79.20 | 0.5314 | 541.0 | 479.5 | |
| 0.00 | 1.08 | 0.00 | 0.64 | 13.99 | 287.28 | -32.99 | 75.28 | 0.5484 | 562.0 | 442.4 | |
| 0.00 | 1.34 | 0.00 | 0.80 | 14.38 | 287.15 | -33.13 | 74.61 | 0.5513 | 601.0 | 483.1 | |
| 0.00 | 1.34 | 0.00 | 0.81 | 16.58 | 286.02 | -34.26 | 71.09 | 0.5725 | 611.0 | 414.3 | |
| 0.00 | 1.34 | 0.00 | 0.81 | 14.23 | 285.82 | -34.46 | 75.23 | 0.5694 | 646.0 | 506.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
