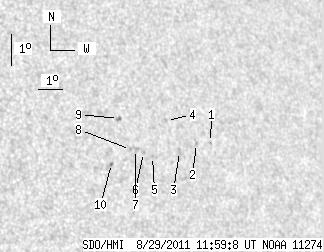

SDO HMI 2011-08-29 11:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 15.69 | 0.00 | 10.35 | 18.20 | 0.66 | 40.93 | 289.56 | 0.6626 | -486.4 | -478.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-29 11:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.73 | 18.04 | 3.01 | 43.28 | 288.76 | 0.6908 | -522.0 | -421.5 | |
| 0.00 | 1.61 | 0.00 | 1.09 | 18.06 | 2.41 | 42.68 | 288.92 | 0.6836 | -670.0 | -530.6 | |
| 0.00 | 2.51 | 0.00 | 1.68 | 17.88 | 1.62 | 41.89 | 288.83 | 0.6737 | -625.0 | -532.6 | |
| 0.00 | 1.25 | 0.00 | 0.84 | 18.86 | 1.35 | 41.62 | 290.34 | 0.6727 | -555.0 | -448.2 | |
| 0.00 | 0.90 | 0.00 | 0.59 | 17.81 | 0.45 | 40.72 | 289.01 | 0.6593 | -470.0 | -449.4 | |
| 0.00 | 1.34 | 0.00 | 0.88 | 17.96 | 0.12 | 40.39 | 289.32 | 0.6554 | -659.0 | -529.9 | |
| 0.00 | 2.96 | 0.00 | 1.93 | 18.08 | 359.81 | 40.08 | 289.58 | 0.6520 | -561.0 | -602.8 | |
| 0.00 | 0.90 | 0.00 | 0.58 | 18.10 | 359.61 | 39.88 | 289.66 | 0.6495 | -651.0 | -571.8 | |
| 0.00 | 2.24 | 0.00 | 1.46 | 19.08 | 359.39 | 39.66 | 291.21 | 0.6492 | -781.0 | -604.7 | |
| 0.00 | 0.90 | 0.00 | 0.57 | 17.73 | 358.73 | 39.00 | 289.33 | 0.6375 | 630.0 | 534.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
