SDO HMI 2011-08-29 11:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 16.49 | 0.00 | 8.37 | 17.41 | 326.09 | 6.36 | 330.25 | 0.2164 | 690.2 | 597.4 | |
|
previous
or next observation for the same group /

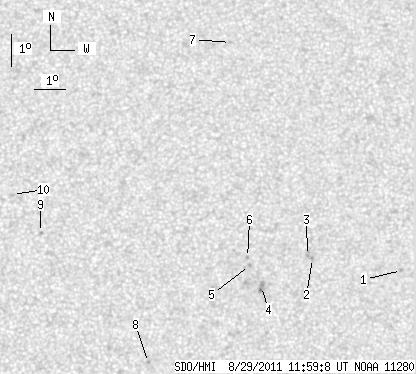

back to the solar disc SDO HMI 2011-08-29 11:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.70 | 0.00 | 0.87 | 16.98 | 331.54 | 11.81 | 311.57 | 0.2628 | -893.0 | -681.4 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 17.41 | 328.70 | 8.97 | 320.43 | 0.2345 | 796.0 | 656.8 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 17.51 | 328.54 | 8.81 | 321.18 | 0.2341 | 1060.0 | 839.9 | |
| 0.00 | 5.38 | 0.00 | 2.72 | 16.58 | 327.03 | 7.30 | 323.60 | 0.2062 | 970.0 | 816.4 | |
| 0.00 | 1.43 | 0.00 | 0.73 | 17.23 | 326.67 | 6.94 | 326.78 | 0.2117 | 842.0 | 724.1 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 17.48 | 326.62 | 6.89 | 327.64 | 0.2147 | 909.0 | 706.6 | |
| 0.00 | 0.72 | 0.00 | 0.37 | 24.19 | 326.36 | 6.64 | 340.28 | 0.3138 | 759.0 | 589.8 | |
| 0.00 | 1.25 | 0.00 | 0.63 | 14.30 | 323.40 | 3.67 | 333.59 | 0.1402 | 1020.0 | 881.9 | |
| 0.00 | 1.34 | 0.00 | 0.68 | 18.30 | 320.03 | 0.30 | 358.51 | 0.1947 | 750.0 | 632.3 | |
| 0.00 | 1.43 | 0.00 | 0.73 | 19.47 | 319.14 | -0.59 | 2.61 | 0.2150 | 689.0 | 615.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
