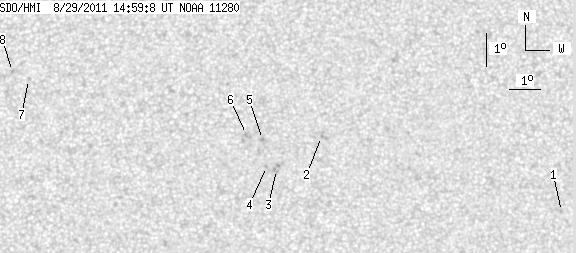

SDO HMI 2011-08-29 14:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.62 | 0.00 | 6.43 | 17.43 | 325.88 | 7.80 | 326.18 | 0.2355 | 556.1 | 559.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-29 14:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.16 | 0.00 | 0.61 | 15.00 | 336.16 | 18.08 | 295.48 | 0.3336 | -822.0 | -616.0 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 17.53 | 328.53 | 10.45 | 316.53 | 0.2526 | 758.0 | 679.7 | |
| 0.00 | 3.23 | 0.00 | 1.64 | 16.55 | 327.03 | 8.96 | 317.88 | 0.2235 | 717.0 | 821.3 | |
| 0.00 | 1.34 | 0.00 | 0.68 | 16.64 | 326.72 | 8.64 | 319.17 | 0.2212 | 836.0 | 677.5 | |
| 0.00 | 1.34 | 0.00 | 0.68 | 17.47 | 326.63 | 8.55 | 321.90 | 0.2309 | 911.0 | 729.0 | |
| 0.00 | 1.52 | 0.00 | 0.77 | 17.64 | 326.12 | 8.05 | 323.99 | 0.2279 | 711.0 | 643.6 | |
| 0.00 | 1.61 | 0.00 | 0.82 | 19.40 | 319.18 | 1.11 | 355.09 | 0.2143 | 497.0 | 478.4 | |
| 0.00 | 1.43 | 0.00 | 0.73 | 19.65 | 318.67 | 0.60 | 357.40 | 0.2180 | 841.0 | 601.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
