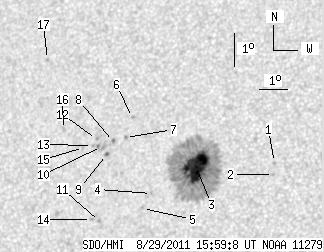

SDO HMI 2011-08-29 15:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41.38 | 284.95 | 22.86 | 157.68 | 13.68 | 291.50 | -26.03 | 73.49 | 0.4463 | -493.3 | -281.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-29 15:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.34 | 0.00 | 0.73 | 13.93 | 294.41 | -23.11 | 71.41 | 0.4037 | -743.0 | -536.2 | |
| 0.00 | 0.81 | 0.00 | 0.44 | 13.57 | 294.41 | -23.11 | 72.29 | 0.4022 | -745.0 | -642.7 | |
| 40.04 | 259.71 | 22.10 | 143.37 | 13.65 | 291.77 | -25.76 | 73.44 | 0.4423 | -1184.9 | -364.8 | |
| 0.00 | 1.34 | 0.00 | 0.75 | 12.78 | 290.30 | -27.22 | 75.93 | 0.4617 | -490.0 | -385.0 | |
| 0.00 | 0.81 | 0.00 | 0.45 | 12.30 | 290.04 | -27.48 | 77.03 | 0.4645 | 511.0 | 434.7 | |
| 0.00 | 1.25 | 0.00 | 0.71 | 15.05 | 289.34 | -28.18 | 71.57 | 0.4827 | 800.0 | 684.8 | |
| 0.00 | 1.25 | 0.00 | 0.71 | 14.42 | 289.18 | -28.34 | 72.91 | 0.4830 | 957.0 | 776.8 | |
| 0.00 | 1.25 | 0.00 | 0.71 | 14.28 | 288.77 | -28.75 | 73.37 | 0.4885 | 868.0 | 755.4 | |
| 1.34 | 1.34 | 0.76 | 0.76 | 13.87 | 288.58 | -28.94 | 74.26 | 0.4901 | 805.1 | 0.0 | |
| 0.00 | 6.00 | 0.00 | 3.41 | 14.10 | 288.36 | -29.16 | 73.87 | 0.4938 | 746.0 | 673.2 | |
| 0.00 | 1.43 | 0.00 | 0.81 | 11.82 | 288.59 | -28.94 | 78.42 | 0.4853 | 779.0 | 631.4 | |
| 0.00 | 0.99 | 0.00 | 0.56 | 14.30 | 288.16 | -29.36 | 73.55 | 0.4974 | 683.0 | 559.0 | |
| 0.00 | 0.99 | 0.00 | 0.56 | 14.11 | 288.04 | -29.48 | 73.97 | 0.4986 | 681.0 | 572.5 | |
| 0.00 | 1.43 | 0.00 | 0.81 | 11.87 | 288.30 | -29.22 | 78.40 | 0.4897 | 768.0 | 611.2 | |
| 0.00 | 1.52 | 0.00 | 0.87 | 14.03 | 287.73 | -29.79 | 74.23 | 0.5029 | 594.0 | 519.6 | |
| 0.00 | 2.15 | 0.00 | 1.24 | 14.54 | 286.93 | -30.59 | 73.53 | 0.5157 | 704.0 | 544.4 | |
| 0.00 | 1.34 | 0.00 | 0.79 | 16.63 | 285.99 | -31.53 | 69.98 | 0.5354 | 783.0 | 573.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
