SDO HMI 2011-08-29 16:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.88 | 0.00 | 8.05 | 7.75 | 348.49 | 31.52 | 273.25 | 0.5202 | -345.3 | -315.2 | |
|
previous
or next observation for the same group /

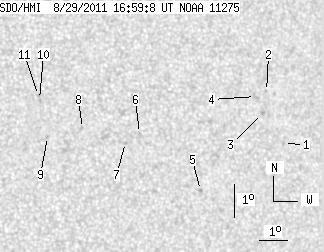

back to the solar disc SDO HMI 2011-08-29 16:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.07 | 0.00 | 0.65 | 6.88 | 352.31 | 35.34 | 271.82 | 0.5767 | -560.0 | -387.0 | |
| 0.00 | 0.99 | 0.00 | 0.59 | 8.49 | 351.82 | 34.86 | 274.62 | 0.5693 | -684.0 | -599.6 | |
| 0.00 | 1.25 | 0.00 | 0.75 | 7.84 | 351.61 | 34.64 | 273.46 | 0.5663 | -814.0 | -667.6 | |
| 0.00 | 2.78 | 0.00 | 1.66 | 8.37 | 351.40 | 34.43 | 274.40 | 0.5632 | -656.0 | -425.5 | |
| 0.00 | 1.52 | 0.00 | 0.89 | 5.66 | 349.17 | 32.20 | 269.29 | 0.5324 | -806.0 | -674.9 | |
| 0.00 | 0.81 | 0.00 | 0.46 | 7.53 | 347.12 | 30.16 | 272.70 | 0.5006 | -690.0 | -594.1 | |
| 0.00 | 1.16 | 0.00 | 0.66 | 7.28 | 346.61 | 29.64 | 272.19 | 0.4930 | -745.0 | -650.3 | |
| 0.00 | 1.16 | 0.00 | 0.65 | 7.80 | 345.15 | 28.18 | 273.20 | 0.4705 | -728.0 | -524.6 | |
| 0.00 | 0.90 | 0.00 | 0.50 | 7.62 | 343.93 | 26.96 | 272.79 | 0.4518 | 670.0 | 480.0 | |
| 0.00 | 0.90 | 0.00 | 0.50 | 8.76 | 343.74 | 26.77 | 275.32 | 0.4489 | 598.0 | 568.6 | |
| 0.00 | 1.34 | 0.00 | 0.74 | 8.88 | 343.71 | 26.74 | 275.60 | 0.4486 | 617.0 | 541.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
