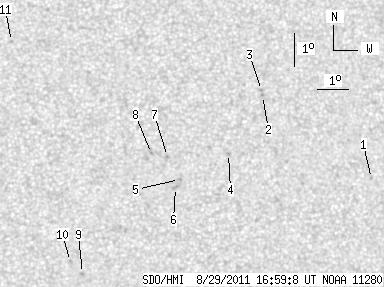

SDO HMI 2011-08-29 16:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 15.38 | 0.00 | 7.90 | 17.02 | 327.18 | 10.22 | 316.23 | 0.2457 | 722.1 | 584.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-29 16:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.34 | 0.00 | 0.70 | 16.63 | 333.25 | 16.28 | 302.30 | 0.3192 | -779.0 | -588.1 | |
| 0.00 | 1.07 | 0.00 | 0.56 | 19.29 | 329.89 | 12.92 | 315.35 | 0.3016 | 813.0 | 600.1 | |
| 0.00 | 1.52 | 0.00 | 0.79 | 19.45 | 329.87 | 12.90 | 315.77 | 0.3032 | 785.0 | 533.4 | |
| 0.00 | 1.61 | 0.00 | 0.83 | 17.53 | 328.65 | 11.68 | 313.46 | 0.2672 | 953.0 | 734.3 | |
| 0.00 | 1.25 | 0.00 | 0.64 | 16.77 | 327.02 | 10.06 | 315.35 | 0.2390 | 800.0 | 738.9 | |
| 0.00 | 2.33 | 0.00 | 1.19 | 16.53 | 326.88 | 9.92 | 314.99 | 0.2345 | 858.0 | 729.7 | |
| 0.00 | 1.25 | 0.00 | 0.64 | 17.49 | 326.68 | 9.71 | 318.43 | 0.2435 | 960.0 | 798.5 | |
| 0.00 | 1.07 | 0.00 | 0.55 | 17.59 | 326.17 | 9.20 | 320.21 | 0.2392 | 875.0 | 682.0 | |
| 0.00 | 1.70 | 0.00 | 0.86 | 13.95 | 323.83 | 6.86 | 315.88 | 0.1674 | 928.0 | 765.9 | |
| 0.00 | 1.52 | 0.00 | 0.77 | 14.32 | 323.46 | 6.50 | 318.96 | 0.1677 | 1005.0 | 735.2 | |
| 0.00 | 0.72 | 0.00 | 0.37 | 21.12 | 321.79 | 4.83 | 342.04 | 0.2557 | 745.0 | 573.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
