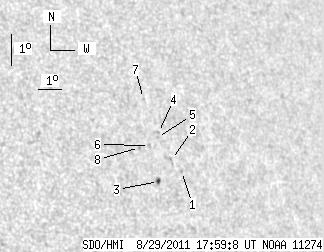

SDO HMI 2011-08-29 17:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.97 | 10.04 | 1.33 | 6.81 | 18.51 | 359.25 | 42.83 | 289.52 | 0.6864 | -412.8 | -390.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-29 17:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.68 | 17.85 | 0.11 | 43.69 | 288.39 | 0.6953 | -632.0 | -518.9 | |
| 0.00 | 1.07 | 0.00 | 0.74 | 18.25 | 359.79 | 43.38 | 289.03 | 0.6923 | -486.0 | -387.3 | |
| 1.97 | 2.51 | 1.33 | 1.69 | 17.63 | 359.04 | 42.62 | 288.29 | 0.6820 | 556.2 | 513.0 | |
| 0.00 | 0.90 | 0.00 | 0.61 | 19.12 | 359.50 | 43.08 | 290.34 | 0.6906 | -560.0 | -500.9 | |
| 0.00 | 0.81 | 0.00 | 0.55 | 18.97 | 359.40 | 42.99 | 290.15 | 0.6892 | -746.0 | -658.1 | |
| 0.00 | 1.70 | 0.00 | 1.15 | 18.75 | 358.99 | 42.57 | 289.94 | 0.6838 | -723.0 | -461.6 | |
| 0.00 | 0.90 | 0.00 | 0.61 | 20.21 | 359.20 | 42.79 | 291.98 | 0.6897 | -527.0 | -398.5 | |
| 0.00 | 1.16 | 0.00 | 0.78 | 18.73 | 358.54 | 42.13 | 290.01 | 0.6784 | -504.0 | -319.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
