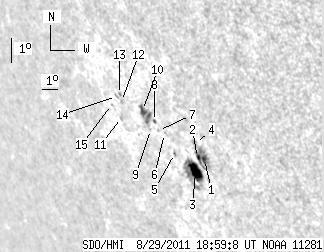

SDO HMI 2011-08-29 18:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.21 | 81.85 | 23.32 | 86.70 | -20.38 | 259.25 | -56.61 | 117.63 | 0.8852 | 219.5 | 27.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-29 18:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.51 | 18.72 | 2.55 | 19.09 | -20.58 | 260.68 | -55.18 | 118.38 | 0.8755 | 875.2 | 582.0 | |
| 1.34 | -1.00 | 1.38 | -1.00 | -20.55 | 260.29 | -55.57 | 118.20 | 0.8783 | 509.5 | 999999 | |
| 14.15 | 34.12 | 14.80 | 35.90 | -21.07 | 259.89 | -55.97 | 118.59 | 0.8827 | 549.2 | -41.0 | |
| 0.00 | 2.78 | 0.00 | 2.83 | -20.07 | 260.44 | -55.42 | 117.74 | 0.8757 | 256.0 | 237.5 | |
| 0.00 | 1.79 | 0.00 | 1.91 | -20.56 | 258.94 | -56.92 | 117.71 | 0.8881 | 257.0 | 220.1 | |
| 0.00 | 0.45 | 0.00 | 0.48 | -19.92 | 258.71 | -57.15 | 116.94 | 0.8879 | 331.0 | 303.4 | |
| 0.00 | 1.07 | 0.00 | 1.16 | -19.86 | 258.39 | -57.47 | 116.76 | 0.8900 | 152.0 | 135.8 | |
| 0.00 | 1.07 | 0.00 | 1.16 | -19.57 | 258.31 | -57.55 | 116.42 | 0.8898 | 59.0 | 50.0 | |
| 0.00 | 1.16 | 0.00 | 1.27 | -19.88 | 257.89 | -57.97 | 116.61 | 0.8936 | -366.0 | -300.6 | |
| 4.21 | 13.70 | 4.59 | 14.92 | -19.26 | 257.75 | -58.11 | 115.91 | 0.8929 | -512.1 | -431.4 | |
| 0.00 | 2.24 | 0.00 | 2.58 | -19.67 | 256.20 | -59.66 | 115.81 | 0.9046 | -243.0 | -294.8 | |
| 0.00 | 0.90 | 0.00 | 1.01 | -19.10 | 256.54 | -59.32 | 115.32 | 0.9009 | -273.0 | -305.9 | |
| 0.00 | 1.25 | 0.00 | 1.41 | -18.87 | 256.55 | -59.31 | 115.08 | 0.9003 | -538.0 | -464.7 | |
| 0.00 | 1.70 | 0.00 | 1.94 | -18.96 | 256.31 | -59.55 | 115.10 | 0.9022 | -523.0 | -418.2 | |
| 0.00 | 0.90 | 0.00 | 1.04 | -19.28 | 255.79 | -60.07 | 115.27 | 0.9064 | -291.0 | -306.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
