SDO HMI 2011-08-29 19:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.08 | 280.77 | 23.37 | 152.77 | 13.77 | 291.45 | -23.86 | 72.24 | 0.4142 | -526.2 | -274.1 | |
|
previous
or next observation for the same group /

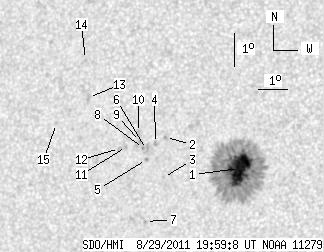

back to the solar disc SDO HMI 2011-08-29 19:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.08 | 256.95 | 23.37 | 139.42 | 13.71 | 291.78 | -23.53 | 72.21 | 0.4090 | -1275.7 | -372.9 | |
| 0.00 | 1.52 | 0.00 | 0.84 | 14.52 | 289.14 | -26.17 | 71.75 | 0.4514 | 952.0 | 744.9 | |
| 0.00 | 0.81 | 0.00 | 0.45 | 13.31 | 289.22 | -26.09 | 74.38 | 0.4462 | 666.0 | 480.0 | |
| 0.00 | 1.88 | 0.00 | 1.05 | 14.32 | 288.82 | -26.49 | 72.34 | 0.4555 | 823.0 | 667.0 | |
| 0.00 | 1.43 | 0.00 | 0.80 | 13.82 | 288.56 | -26.74 | 73.53 | 0.4575 | 1063.0 | 835.5 | |
| 0.00 | 3.05 | 0.00 | 1.70 | 14.12 | 288.53 | -26.78 | 72.90 | 0.4591 | 759.0 | 730.0 | |
| 0.00 | 1.34 | 0.00 | 0.74 | 11.94 | 288.75 | -26.56 | 77.57 | 0.4498 | 783.0 | 621.3 | |
| 0.00 | 1.16 | 0.00 | 0.65 | 14.15 | 288.42 | -26.89 | 72.89 | 0.4607 | 831.0 | 741.4 | |
| 0.00 | 1.52 | 0.00 | 0.85 | 14.36 | 288.29 | -27.02 | 72.51 | 0.4634 | 742.0 | 571.7 | |
| 0.00 | 3.05 | 0.00 | 1.70 | 14.63 | 288.18 | -27.13 | 71.99 | 0.4658 | 617.0 | 517.7 | |
| 0.00 | 1.61 | 0.00 | 0.90 | 14.18 | 287.82 | -27.49 | 73.09 | 0.4697 | 714.0 | 527.7 | |
| 0.00 | 1.61 | 0.00 | 0.91 | 14.10 | 287.58 | -27.73 | 73.34 | 0.4729 | 661.0 | 593.7 | |
| 0.00 | 3.40 | 0.00 | 1.94 | 15.59 | 286.26 | -29.05 | 70.90 | 0.4969 | 215.0 | 310.3 | |
| 0.00 | 0.90 | 0.00 | 0.51 | 16.74 | 285.97 | -29.34 | 68.80 | 0.5053 | 757.0 | 556.0 | |
| 0.00 | 0.54 | 0.00 | 0.31 | 14.73 | 285.24 | -30.07 | 72.99 | 0.5088 | 566.0 | 513.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
