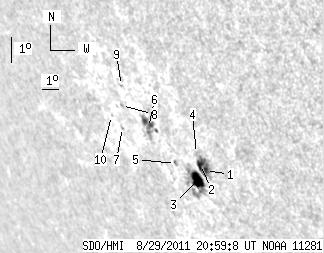

SDO HMI 2011-08-29 20:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.16 | 77.84 | 20.29 | 79.56 | -20.44 | 259.43 | -55.33 | 118.19 | 0.8762 | 378.8 | 9.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-29 20:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.15 | 20.33 | 2.13 | 20.15 | -20.63 | 260.56 | -54.20 | 118.83 | 0.8684 | 894.5 | 614.0 | |
| 5.02 | -1.00 | 4.99 | -1.00 | -20.45 | 260.37 | -54.38 | 118.56 | 0.8692 | 553.9 | 999999 | |
| 12.99 | 34.57 | 13.17 | 35.24 | -21.01 | 259.91 | -54.85 | 118.97 | 0.8744 | 578.8 | 27.6 | |
| 0.00 | 1.34 | 0.00 | 1.33 | -20.09 | 260.34 | -54.41 | 118.16 | 0.8683 | 350.0 | 340.9 | |
| 0.00 | 1.97 | 0.00 | 2.04 | -20.58 | 258.88 | -55.87 | 118.12 | 0.8806 | 247.0 | 199.6 | |
| 0.00 | 16.57 | 0.00 | 17.45 | -19.48 | 257.91 | -56.85 | 116.59 | 0.8845 | -928.0 | -442.9 | |
| 0.00 | 0.99 | 0.00 | 1.10 | -19.67 | 256.23 | -58.53 | 116.20 | 0.8969 | -182.0 | -299.5 | |
| 0.00 | 0.90 | 0.00 | 0.97 | -18.89 | 256.61 | -58.15 | 115.51 | 0.8923 | -634.0 | -469.8 | |
| 0.00 | 0.45 | 0.00 | 0.48 | -18.19 | 256.99 | -57.77 | 114.89 | 0.8878 | -477.0 | -421.4 | |
| 0.00 | 0.72 | 0.00 | 0.80 | -19.32 | 255.74 | -59.01 | 115.67 | 0.8994 | -329.0 | -277.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
