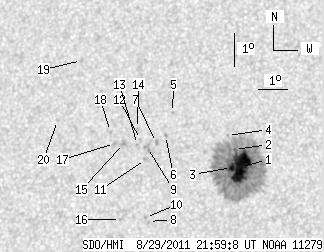

SDO HMI 2011-08-29 21:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39.05 | 281.05 | 21.02 | 151.73 | 13.80 | 291.43 | -22.77 | 71.57 | 0.3978 | -405.6 | -295.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-29 21:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.75 | 254.19 | 18.70 | 136.85 | 13.74 | 291.82 | -22.38 | 71.48 | 0.3917 | -1345.8 | -407.5 | |
| 0.99 | -1.00 | 0.53 | -1.00 | 14.25 | 291.53 | -22.67 | 70.42 | 0.3982 | -579.9 | 999999 | |
| 3.31 | -1.00 | 1.79 | -1.00 | 13.70 | 291.49 | -22.71 | 71.79 | 0.3966 | -1059.7 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.58 | 14.67 | 291.25 | -22.95 | 69.60 | 0.4042 | -557.0 | -403.7 | |
| 0.00 | 0.99 | 0.00 | 0.54 | 15.27 | 289.29 | -24.91 | 69.43 | 0.4358 | 869.0 | 714.0 | |
| 0.00 | 1.43 | 0.00 | 0.79 | 14.56 | 289.14 | -25.07 | 71.11 | 0.4352 | 908.0 | 697.1 | |
| 0.00 | 2.15 | 0.00 | 1.18 | 14.33 | 288.85 | -25.35 | 71.77 | 0.4385 | 784.0 | 642.1 | |
| 0.00 | 0.90 | 0.00 | 0.49 | 11.92 | 288.84 | -25.36 | 77.24 | 0.4314 | 837.0 | 652.5 | |
| 0.00 | 4.21 | 0.00 | 2.32 | 14.16 | 288.56 | -25.64 | 72.29 | 0.4423 | 788.0 | 725.4 | |
| 0.00 | 0.99 | 0.00 | 0.54 | 12.04 | 288.73 | -25.47 | 77.01 | 0.4335 | 781.0 | 640.2 | |
| 0.00 | 1.52 | 0.00 | 0.84 | 13.80 | 288.54 | -25.67 | 73.12 | 0.4414 | 1064.0 | 641.5 | |
| 0.00 | 1.34 | 0.00 | 0.74 | 14.39 | 288.29 | -25.91 | 71.92 | 0.4471 | 623.0 | 532.2 | |
| 0.00 | 0.99 | 0.00 | 0.55 | 14.24 | 288.21 | -26.00 | 72.30 | 0.4478 | 748.0 | 575.3 | |
| 0.00 | 1.07 | 0.00 | 0.60 | 14.72 | 288.14 | -26.06 | 71.27 | 0.4505 | 661.0 | 536.7 | |
| 0.00 | 2.78 | 0.00 | 1.54 | 14.24 | 287.72 | -26.49 | 72.52 | 0.4550 | 825.0 | 674.7 | |
| 0.00 | 1.43 | 0.00 | 0.79 | 11.93 | 287.88 | -26.32 | 77.53 | 0.4462 | 743.0 | 596.0 | |
| 0.00 | 2.24 | 0.00 | 1.25 | 14.22 | 287.40 | -26.80 | 72.70 | 0.4596 | 656.0 | 432.4 | |
| 0.00 | 1.07 | 0.00 | 0.60 | 14.58 | 287.22 | -26.98 | 72.03 | 0.4636 | 702.0 | 527.0 | |
| 0.00 | 1.61 | 0.00 | 0.92 | 16.69 | 285.88 | -28.32 | 68.40 | 0.4908 | 837.0 | 583.9 | |
| 0.00 | 1.07 | 0.00 | 0.61 | 14.81 | 285.31 | -28.90 | 72.39 | 0.4921 | 680.0 | 488.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
