SDO HMI 2011-08-29 22:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.86 | 0.00 | 4.57 | 15.79 | 327.40 | 13.75 | 305.32 | 0.2802 | 447.4 | 316.6 | |
|
previous
or next observation for the same group /

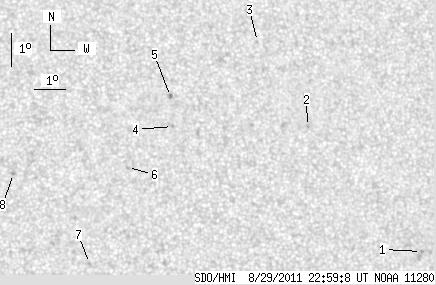

back to the solar disc SDO HMI 2011-08-29 22:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.16 | 0.00 | 0.62 | 12.50 | 334.63 | 20.98 | 286.16 | 0.3655 | -842.0 | -712.3 | |
| 0.00 | 1.07 | 0.00 | 0.57 | 16.46 | 331.21 | 17.56 | 300.04 | 0.3356 | -832.0 | -757.3 | |
| 0.00 | 0.81 | 0.00 | 0.42 | 19.13 | 329.81 | 16.16 | 308.91 | 0.3393 | 833.0 | 619.2 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 16.60 | 326.80 | 13.15 | 307.50 | 0.2760 | 973.0 | 818.4 | |
| 0.00 | 1.61 | 0.00 | 0.83 | 17.52 | 326.80 | 13.15 | 310.17 | 0.2851 | 955.0 | 728.3 | |
| 0.00 | 1.16 | 0.00 | 0.59 | 15.39 | 325.27 | 11.62 | 306.86 | 0.2438 | 679.0 | 485.4 | |
| 0.00 | 0.54 | 0.00 | 0.27 | 12.49 | 323.92 | 10.27 | 298.59 | 0.1992 | 872.0 | 718.8 | |
| 0.00 | 1.61 | 0.00 | 0.81 | 15.28 | 321.63 | 7.98 | 316.75 | 0.1964 | 941.0 | 723.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
