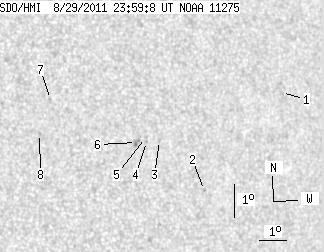

SDO HMI 2011-08-29 23:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.35 | 0.00 | 6.80 | 7.48 | 347.22 | 34.12 | 272.80 | 0.5585 | -368.1 | -394.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-29 23:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.34 | 0.00 | 0.86 | 8.40 | 352.41 | 39.31 | 274.52 | 0.6310 | -641.0 | -465.9 | |
| 0.00 | 1.07 | 0.00 | 0.66 | 5.67 | 349.17 | 36.07 | 269.78 | 0.5881 | -738.0 | -646.3 | |
| 0.00 | 1.25 | 0.00 | 0.75 | 7.29 | 347.62 | 34.52 | 272.46 | 0.5648 | -640.0 | -545.7 | |
| 0.00 | 1.25 | 0.00 | 0.75 | 7.30 | 347.14 | 34.04 | 272.44 | 0.5579 | -678.0 | -506.6 | |
| 0.00 | 0.81 | 0.00 | 0.48 | 7.42 | 347.11 | 34.01 | 272.66 | 0.5574 | -711.0 | -638.6 | |
| 0.00 | 3.22 | 0.00 | 1.91 | 7.29 | 346.77 | 33.67 | 272.40 | 0.5526 | -889.0 | -761.4 | |
| 0.00 | 1.16 | 0.00 | 0.67 | 8.79 | 343.79 | 30.69 | 275.19 | 0.5085 | 659.0 | 503.2 | |
| 0.00 | 1.25 | 0.00 | 0.72 | 7.79 | 343.32 | 30.22 | 273.20 | 0.5014 | 693.0 | 503.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
