SDO HMI 2011-08-30 00:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.23 | 36.37 | 8.15 | 19.52 | 24.79 | 297.80 | -14.75 | 36.98 | 0.3869 | 84.8 | 366.3 | |
|
previous
or next observation for the same group /

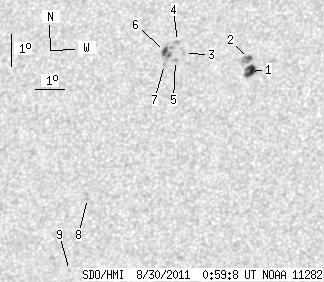

back to the solar disc SDO HMI 2011-08-30 00:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.33 | 10.30 | 4.44 | 5.49 | 24.82 | 299.52 | -13.03 | 33.75 | 0.3699 | -967.5 | -776.9 | |
| 3.23 | 6.81 | 1.72 | 3.64 | 25.23 | 299.41 | -13.14 | 33.30 | 0.3762 | -770.3 | -633.6 | |
| 0.00 | 0.90 | 0.00 | 0.48 | 25.32 | 297.19 | -15.36 | 37.18 | 0.3980 | 699.0 | 607.4 | |
| 0.00 | 2.06 | 0.00 | 1.12 | 25.70 | 296.89 | -15.66 | 37.06 | 0.4053 | 853.0 | 678.4 | |
| 0.00 | 1.79 | 0.00 | 0.97 | 25.09 | 296.90 | -15.65 | 38.05 | 0.3979 | 1045.0 | 860.0 | |
| 3.67 | 10.57 | 1.99 | 5.72 | 25.36 | 296.48 | -16.07 | 38.29 | 0.4053 | 830.3 | 779.7 | |
| 0.00 | 1.43 | 0.00 | 0.77 | 24.95 | 296.54 | -16.01 | 38.90 | 0.3999 | 907.0 | 736.8 | |
| 0.00 | 1.52 | 0.00 | 0.81 | 20.65 | 294.45 | -18.10 | 50.56 | 0.3781 | 942.0 | 667.5 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 18.41 | 294.10 | -18.45 | 56.19 | 0.3629 | 722.0 | 553.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
