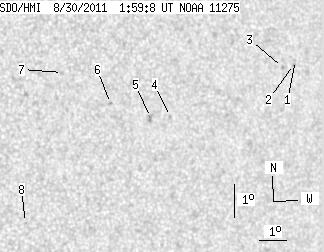

SDO HMI 2011-08-30 01:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.65 | 0.00 | 6.53 | 7.81 | 347.97 | 35.97 | 273.39 | 0.5844 | -386.6 | -448.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-30 01:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.72 | 0.00 | 0.47 | 8.57 | 352.58 | 40.58 | 274.82 | 0.6478 | -511.0 | -407.6 | |
| 0.00 | 1.25 | 0.00 | 0.81 | 8.46 | 352.48 | 40.48 | 274.64 | 0.6465 | -560.0 | -508.8 | |
| 0.00 | 1.25 | 0.00 | 0.81 | 8.40 | 352.03 | 40.03 | 274.54 | 0.6406 | -654.0 | -522.1 | |
| 0.00 | 1.16 | 0.00 | 0.71 | 7.25 | 347.57 | 35.57 | 272.45 | 0.5797 | -697.0 | -522.7 | |
| 0.00 | 3.14 | 0.00 | 1.89 | 7.28 | 346.82 | 34.82 | 272.44 | 0.5691 | -927.0 | -759.2 | |
| 0.00 | 1.52 | 0.00 | 0.90 | 7.80 | 345.39 | 33.39 | 273.31 | 0.5482 | -778.0 | -595.4 | |
| 0.00 | 1.25 | 0.00 | 0.73 | 8.85 | 343.74 | 31.74 | 275.27 | 0.5241 | 558.0 | 442.0 | |
| 0.00 | 0.36 | 0.00 | 0.21 | 4.40 | 342.11 | 30.11 | 266.41 | 0.5032 | 476.0 | 590.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
