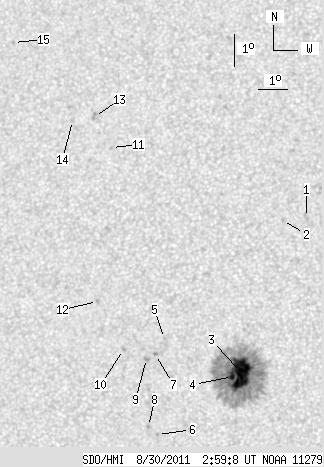

SDO HMI 2011-08-30 02:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41.94 | 275.04 | 22.18 | 145.81 | 14.08 | 291.50 | -19.95 | 69.01 | 0.3564 | -541.0 | -312.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-30 02:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.69 | 0.00 | 1.43 | 18.64 | 293.51 | -17.94 | 54.94 | 0.3581 | 788.0 | 642.8 | |
| 0.00 | 0.90 | 0.00 | 0.48 | 18.52 | 292.72 | -18.73 | 56.29 | 0.3677 | 720.0 | 612.0 | |
| 38.00 | 253.61 | 20.09 | 134.09 | 13.82 | 291.82 | -19.63 | 69.35 | 0.3501 | -1346.2 | -414.1 | |
| 3.94 | -3.00 | 2.09 | -3.00 | 13.68 | 291.54 | -19.91 | 69.95 | 0.3538 | -1079.3 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.43 | 14.74 | 289.16 | -22.30 | 69.00 | 0.3947 | 980.0 | 772.9 | |
| 0.00 | 1.08 | 0.00 | 0.58 | 11.81 | 289.20 | -22.25 | 76.33 | 0.3830 | 866.0 | 720.1 | |
| 0.00 | 1.97 | 0.00 | 1.06 | 14.24 | 288.90 | -22.55 | 70.39 | 0.3962 | 844.0 | 733.9 | |
| 0.00 | 1.43 | 0.00 | 0.77 | 12.04 | 288.88 | -22.57 | 75.89 | 0.3887 | 929.0 | 703.0 | |
| 0.00 | 2.15 | 0.00 | 1.16 | 14.10 | 288.61 | -22.84 | 70.90 | 0.4000 | 823.0 | 792.0 | |
| 0.00 | 2.06 | 0.00 | 1.12 | 14.34 | 287.81 | -23.65 | 70.83 | 0.4131 | 788.0 | 626.8 | |
| 0.00 | 0.90 | 0.00 | 0.50 | 20.52 | 286.51 | -24.94 | 58.52 | 0.4650 | 682.0 | 616.6 | |
| 0.00 | 1.88 | 0.00 | 1.03 | 15.76 | 286.74 | -24.71 | 68.26 | 0.4350 | 860.0 | 590.8 | |
| 0.00 | 2.96 | 0.00 | 1.67 | 21.45 | 285.73 | -25.72 | 57.41 | 0.4814 | 664.0 | 674.5 | |
| 0.00 | 1.43 | 0.00 | 0.81 | 21.28 | 284.96 | -26.49 | 58.36 | 0.4902 | 664.0 | 456.9 | |
| 0.00 | 1.17 | 0.00 | 0.68 | 23.59 | 282.27 | -29.18 | 56.36 | 0.5388 | 661.0 | 549.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
