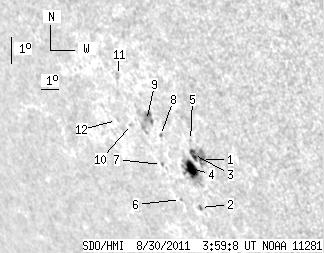

SDO HMI 2011-08-30 03:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.44 | 71.62 | 18.76 | 66.41 | -20.37 | 259.33 | -51.58 | 119.65 | 0.8472 | 442.3 | 116.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-30 03:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.97 | 17.30 | 1.78 | 15.65 | -20.54 | 260.49 | -50.41 | 120.35 | 0.8384 | 872.7 | 634.4 | |
| 1.08 | 1.61 | 1.01 | 1.52 | -22.26 | 259.61 | -51.30 | 121.81 | 0.8520 | 374.0 | 392.3 | |
| 4.93 | -1.00 | 4.48 | -1.00 | -20.41 | 260.15 | -50.76 | 120.05 | 0.8407 | 590.2 | 999999 | |
| 12.46 | 29.67 | 11.49 | 27.41 | -20.91 | 259.80 | -51.10 | 120.45 | 0.8453 | 646.8 | 269.1 | |
| 0.00 | 0.90 | 0.00 | 0.81 | -19.93 | 260.21 | -50.70 | 119.55 | 0.8384 | 567.0 | 492.2 | |
| 0.00 | 0.63 | 0.00 | 0.60 | -22.09 | 258.63 | -52.27 | 121.20 | 0.8588 | 344.0 | 304.7 | |
| 0.00 | 1.17 | 0.00 | 1.12 | -20.95 | 258.20 | -52.70 | 119.79 | 0.8580 | 357.0 | 261.2 | |
| 0.00 | 1.25 | 0.00 | 1.18 | -19.92 | 258.65 | -52.25 | 118.87 | 0.8510 | 448.0 | 356.3 | |
| 0.00 | 14.52 | 0.00 | 13.72 | -19.48 | 258.12 | -52.79 | 118.16 | 0.8537 | -525.0 | -322.5 | |
| 0.00 | 1.34 | 0.00 | 1.31 | -19.71 | 257.19 | -53.71 | 118.04 | 0.8617 | -416.0 | -442.7 | |
| 0.00 | 2.96 | 0.00 | 2.82 | -18.08 | 257.20 | -53.71 | 116.27 | 0.8565 | -491.0 | -377.6 | |
| 0.00 | 0.27 | 0.00 | 0.27 | -19.66 | 256.39 | -54.51 | 117.67 | 0.8678 | -455.0 | -478.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
