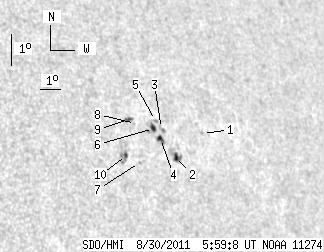

SDO HMI 2011-08-30 05:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.83 | 36.94 | 8.99 | 28.10 | 18.39 | 359.30 | 49.49 | 288.13 | 0.7614 | -345.4 | -155.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-30 05:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.86 | 18.42 | 1.74 | 51.93 | 287.85 | 0.7870 | -550.0 | -439.6 | |
| 2.51 | 9.32 | 1.94 | 7.20 | 17.85 | 0.13 | 50.32 | 287.32 | 0.7696 | 546.9 | 61.1 | |
| 0.00 | 2.87 | 0.00 | 2.21 | 18.76 | 359.79 | 49.98 | 288.54 | 0.7671 | -592.0 | -433.2 | |
| 2.78 | 4.66 | 2.13 | 3.57 | 18.46 | 359.62 | 49.81 | 288.18 | 0.7650 | -665.5 | -474.0 | |
| 0.00 | 1.52 | 0.00 | 1.17 | 19.03 | 359.60 | 49.79 | 288.92 | 0.7655 | -565.0 | -475.4 | |
| 2.78 | 5.56 | 2.12 | 4.24 | 18.80 | 359.41 | 49.60 | 288.64 | 0.7631 | -702.4 | -589.4 | |
| 0.00 | 1.08 | 0.00 | 0.80 | 17.83 | 358.35 | 48.54 | 287.52 | 0.7504 | 172.0 | 234.2 | |
| 0.00 | 0.63 | 0.00 | 0.47 | 19.03 | 358.61 | 48.80 | 289.07 | 0.7549 | -536.0 | -495.0 | |
| 2.42 | 3.23 | 1.81 | 2.42 | 19.18 | 358.33 | 48.52 | 289.31 | 0.7521 | -696.3 | -607.9 | |
| 1.34 | 6.99 | 0.99 | 5.16 | 18.09 | 357.82 | 48.01 | 287.95 | 0.7450 | 348.1 | 225.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
