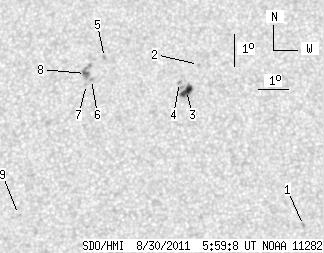

SDO HMI 2011-08-30 05:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.77 | 27.61 | 5.17 | 14.61 | 24.72 | 298.50 | -11.30 | 30.05 | 0.3546 | -171.6 | 157.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-30 05:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.88 | 0.00 | 0.96 | 20.65 | 303.93 | -5.88 | 22.28 | 0.2539 | -947.0 | -715.7 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 25.66 | 300.14 | -9.67 | 25.38 | 0.3546 | -715.0 | -570.5 | |
| 7.62 | 10.49 | 4.02 | 5.53 | 24.83 | 299.80 | -10.00 | 27.32 | 0.3450 | -1004.0 | -711.0 | |
| 0.00 | 1.79 | 0.00 | 0.95 | 25.08 | 299.55 | -10.26 | 27.54 | 0.3505 | -691.0 | -476.5 | |
| 0.00 | 1.61 | 0.00 | 0.86 | 25.81 | 296.91 | -12.90 | 31.92 | 0.3818 | 783.0 | 579.2 | |
| 0.00 | 1.61 | 0.00 | 0.86 | 25.10 | 296.54 | -13.27 | 33.75 | 0.3757 | 1046.0 | 823.6 | |
| 0.00 | 0.72 | 0.00 | 0.38 | 24.94 | 296.38 | -13.42 | 34.32 | 0.3750 | 745.0 | 646.0 | |
| 2.15 | 7.80 | 1.15 | 4.17 | 25.29 | 296.31 | -13.50 | 33.89 | 0.3802 | 926.2 | 790.8 | |
| 0.00 | 0.63 | 0.00 | 0.33 | 20.79 | 294.53 | -15.28 | 45.79 | 0.3453 | 661.0 | 558.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
