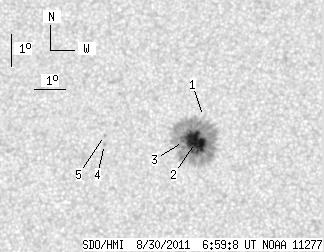

SDO HMI 2011-08-30 06:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.46 | 173.99 | 16.09 | 88.99 | 18.12 | 299.76 | -9.50 | 39.29 | 0.2489 | -1181.1 | -411.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-30 06:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.70 | 0.00 | 0.87 | 18.92 | 300.02 | -9.24 | 36.50 | 0.2565 | -59.0 | -39.4 | |
| 30.12 | 170.04 | 15.40 | 86.96 | 18.11 | 299.81 | -9.45 | 39.18 | 0.2482 | -1307.3 | -411.9 | |
| 1.34 | -2.00 | 0.69 | -2.00 | 18.13 | 299.42 | -9.84 | 40.22 | 0.2527 | -834.9 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 17.98 | 296.86 | -12.40 | 46.98 | 0.2805 | -899.0 | -664.1 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 18.26 | 296.84 | -12.42 | 46.28 | 0.2838 | -880.0 | -653.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
