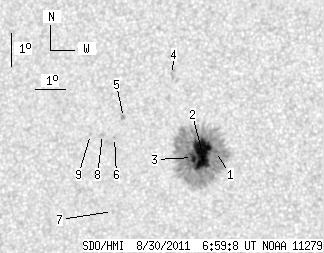

SDO HMI 2011-08-30 06:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39.17 | 267.84 | 20.45 | 139.98 | 13.87 | 291.71 | -17.55 | 67.30 | 0.3186 | -850.7 | -373.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-30 06:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.81 | 256.90 | 0.42 | 134.17 | 13.91 | 292.25 | -17.01 | 66.60 | 0.3108 | -868.2 | -422.8 | |
| 34.15 | -1.00 | 17.83 | -1.00 | 13.84 | 291.83 | -17.43 | 67.27 | 0.3167 | -1395.9 | 999999 | |
| 4.21 | -1.00 | 2.20 | -1.00 | 13.70 | 291.51 | -17.75 | 67.99 | 0.3208 | -1090.0 | 999999 | |
| 0.00 | 3.68 | 0.00 | 1.94 | 16.21 | 290.63 | -18.63 | 61.93 | 0.3491 | 754.0 | 535.5 | |
| 0.00 | 1.88 | 0.00 | 1.00 | 14.83 | 289.13 | -20.13 | 67.05 | 0.3628 | 934.0 | 776.0 | |
| 0.00 | 0.54 | 0.00 | 0.29 | 14.21 | 288.89 | -20.37 | 68.88 | 0.3632 | 917.0 | 702.2 | |
| 0.00 | 1.34 | 0.00 | 0.71 | 11.96 | 289.02 | -20.24 | 74.92 | 0.3520 | 845.0 | 577.0 | |
| 0.00 | 2.51 | 0.00 | 1.34 | 14.28 | 288.49 | -20.77 | 69.01 | 0.3698 | 856.0 | 523.7 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 14.27 | 288.09 | -21.17 | 69.35 | 0.3757 | 862.0 | 691.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
