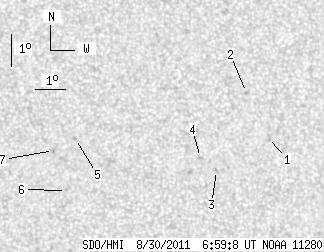

SDO HMI 2011-08-30 06:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.84 | 0.00 | 5.83 | 17.41 | 330.20 | 20.94 | 298.88 | 0.3902 | -69.3 | -202.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-30 06:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.51 | 0.00 | 1.38 | 17.52 | 333.11 | 23.84 | 296.24 | 0.4316 | -531.0 | -566.2 | |
| 0.00 | 1.43 | 0.00 | 0.79 | 18.94 | 332.54 | 23.28 | 299.77 | 0.4325 | -849.0 | -612.9 | |
| 0.00 | 1.52 | 0.00 | 0.82 | 16.59 | 331.20 | 21.93 | 295.74 | 0.3991 | -819.0 | -617.1 | |
| 0.00 | 1.97 | 0.00 | 1.06 | 17.02 | 330.70 | 21.44 | 297.18 | 0.3946 | -679.0 | -510.8 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 17.77 | 326.58 | 17.32 | 303.76 | 0.3424 | 772.0 | 653.0 | |
| 0.00 | 0.81 | 0.00 | 0.42 | 16.18 | 326.13 | 16.87 | 300.17 | 0.3238 | 810.0 | 656.0 | |
| 0.00 | 1.43 | 0.00 | 0.75 | 17.42 | 325.81 | 16.55 | 303.97 | 0.3292 | 811.0 | 604.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
