SDO HMI 2011-08-30 07:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.24 | 46.27 | 11.75 | 35.85 | 18.42 | 359.15 | 50.43 | 288.05 | 0.7714 | -159.9 | -286.3 | |
|
previous
or next observation for the same group /

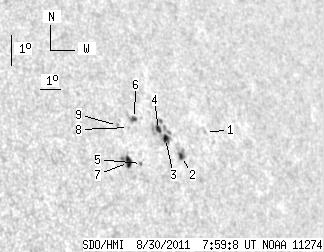

back to the solar disc SDO HMI 2011-08-30 07:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.88 | 18.46 | 1.77 | 53.06 | 287.79 | 0.7984 | -532.0 | -476.1 | |
| 2.06 | 7.35 | 1.63 | 5.82 | 17.86 | 0.25 | 51.54 | 287.19 | 0.7824 | 391.5 | 37.1 | |
| 3.23 | 20.89 | 2.53 | 16.34 | 18.47 | 359.69 | 50.97 | 288.04 | 0.7772 | -645.0 | -506.7 | |
| 3.14 | -3.00 | 2.45 | -3.00 | 18.78 | 359.46 | 50.74 | 288.46 | 0.7752 | -746.1 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.82 | 17.83 | 358.23 | 49.52 | 287.39 | 0.7610 | 467.0 | 407.3 | |
| 1.70 | 4.93 | 1.30 | 3.77 | 19.22 | 358.43 | 49.72 | 289.18 | 0.7650 | -704.0 | -644.0 | |
| 5.11 | 9.14 | 3.84 | 6.87 | 17.91 | 357.63 | 48.91 | 287.59 | 0.7546 | 618.3 | 357.5 | |
| 0.00 | 0.72 | 0.00 | 0.54 | 18.97 | 358.04 | 49.32 | 288.92 | 0.7604 | -584.0 | -509.9 | |
| 0.00 | 1.08 | 0.00 | 0.81 | 19.08 | 357.54 | 48.83 | 289.14 | 0.7552 | -506.0 | -531.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
