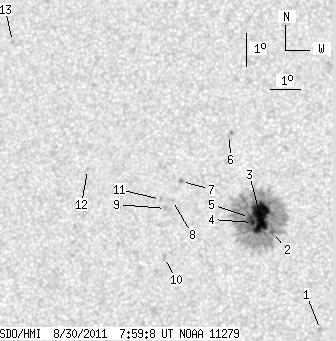

SDO HMI 2011-08-30 07:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.02 | 261.55 | 19.26 | 136.35 | 13.87 | 291.61 | -17.11 | 66.82 | 0.3120 | -737.4 | -368.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-30 07:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.34 | 0.00 | 0.69 | 10.49 | 293.95 | -14.77 | 76.07 | 0.2594 | -933.0 | -668.7 | |
| 1.17 | 245.24 | 0.60 | 127.71 | 13.38 | 292.23 | -16.48 | 67.67 | 0.2997 | -997.8 | -440.6 | |
| 33.25 | -2.00 | 17.31 | -2.00 | 13.85 | 291.81 | -16.91 | 66.66 | 0.3089 | -1388.6 | 999999 | |
| 1.79 | -2.00 | 0.93 | -2.00 | 13.66 | 291.56 | -17.15 | 67.50 | 0.3116 | -1173.3 | 999999 | |
| 0.81 | -2.00 | 0.42 | -2.00 | 13.81 | 291.45 | -17.26 | 67.17 | 0.3140 | -921.1 | 999999 | |
| 0.00 | 3.23 | 0.00 | 1.70 | 16.29 | 290.58 | -18.13 | 61.14 | 0.3426 | 653.0 | 600.2 | |
| 0.00 | 1.97 | 0.00 | 1.04 | 14.82 | 289.12 | -19.59 | 66.59 | 0.3547 | 883.0 | 730.9 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 14.23 | 288.88 | -19.83 | 68.38 | 0.3553 | 911.0 | 751.8 | |
| 0.00 | 2.42 | 0.00 | 1.28 | 13.98 | 288.67 | -20.04 | 69.24 | 0.3572 | 949.0 | 716.6 | |
| 0.00 | 2.33 | 0.00 | 1.23 | 12.49 | 288.77 | -19.95 | 73.26 | 0.3494 | 763.0 | 646.3 | |
| 0.00 | 2.15 | 0.00 | 1.14 | 14.24 | 288.48 | -20.23 | 68.68 | 0.3614 | 843.0 | 573.1 | |
| 0.00 | 0.63 | 0.00 | 0.34 | 15.05 | 285.94 | -22.77 | 68.57 | 0.4033 | 684.0 | 531.6 | |
| 0.00 | 1.25 | 0.00 | 0.70 | 18.84 | 282.81 | -25.91 | 62.60 | 0.4677 | 704.0 | 544.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
