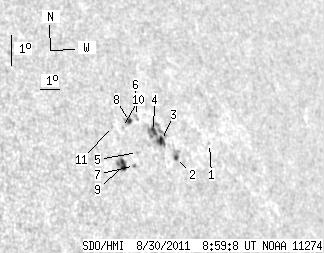

SDO HMI 2011-08-30 08:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.60 | 52.35 | 12.16 | 41.05 | 18.49 | 359.16 | 50.99 | 288.06 | 0.7773 | -184.6 | -314.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-30 08:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.82 | 18.15 | 2.15 | 53.99 | 287.31 | 0.8073 | -442.0 | -380.7 | |
| 1.70 | 5.56 | 1.36 | 4.46 | 17.89 | 0.28 | 52.12 | 287.17 | 0.7884 | 338.4 | -13.0 | |
| 3.59 | 25.72 | 2.84 | 20.37 | 18.48 | 359.75 | 51.58 | 287.97 | 0.7835 | -688.8 | -509.3 | |
| 2.96 | -3.00 | 2.34 | -3.00 | 18.79 | 359.47 | 51.30 | 288.40 | 0.7810 | -790.2 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.90 | 18.23 | 358.43 | 50.26 | 287.82 | 0.7694 | 323.0 | 213.2 | |
| 0.00 | 2.60 | 0.00 | 2.03 | 19.32 | 358.83 | 50.66 | 289.17 | 0.7750 | -636.0 | -529.7 | |
| 0.00 | 1.34 | 0.00 | 1.03 | 17.85 | 358.13 | 49.96 | 287.36 | 0.7658 | 578.0 | 447.5 | |
| 2.15 | 4.57 | 1.67 | 3.53 | 19.20 | 358.42 | 50.26 | 289.08 | 0.7706 | -709.2 | -622.0 | |
| 5.20 | 8.69 | 3.95 | 6.60 | 17.90 | 357.60 | 49.44 | 287.49 | 0.7603 | 659.1 | 506.2 | |
| 0.00 | 0.99 | 0.00 | 0.76 | 19.05 | 358.01 | 49.84 | 288.94 | 0.7661 | -485.0 | -496.9 | |
| 0.00 | 0.72 | 0.00 | 0.55 | 19.12 | 357.54 | 49.38 | 289.11 | 0.7612 | -765.0 | -672.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
