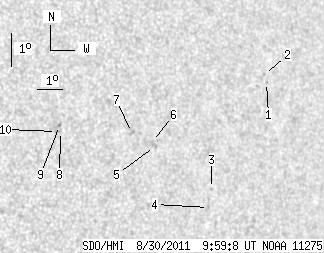

SDO HMI 2011-08-30 09:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.55 | 0.00 | 8.13 | 7.22 | 347.85 | 40.23 | 272.73 | 0.6430 | -148.8 | -191.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-30 09:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.69 | 8.47 | 352.62 | 45.00 | 274.82 | 0.7042 | -275.0 | -313.3 | |
| 0.00 | 1.08 | 0.00 | 0.75 | 8.71 | 352.57 | 44.95 | 275.18 | 0.7035 | -649.0 | -505.9 | |
| 0.00 | 0.90 | 0.00 | 0.60 | 5.47 | 349.94 | 42.32 | 270.25 | 0.6726 | -519.0 | -473.3 | |
| 0.00 | 1.25 | 0.00 | 0.84 | 4.91 | 349.77 | 42.15 | 269.39 | 0.6710 | -574.0 | -430.2 | |
| 0.00 | 1.25 | 0.00 | 0.81 | 6.93 | 347.76 | 40.15 | 272.25 | 0.6428 | -607.0 | -560.8 | |
| 0.00 | 1.34 | 0.00 | 0.87 | 7.08 | 347.70 | 40.08 | 272.49 | 0.6419 | -91.0 | -117.0 | |
| 0.00 | 2.15 | 0.00 | 1.37 | 7.42 | 346.90 | 39.28 | 272.97 | 0.6309 | -629.0 | -614.3 | |
| 0.00 | 1.08 | 0.00 | 0.66 | 7.66 | 344.17 | 36.55 | 273.21 | 0.5934 | 553.0 | 389.8 | |
| 0.00 | 1.17 | 0.00 | 0.72 | 7.84 | 344.15 | 36.53 | 273.52 | 0.5930 | 679.0 | 569.2 | |
| 0.00 | 1.34 | 0.00 | 0.82 | 7.67 | 344.02 | 36.40 | 273.22 | 0.5912 | 624.0 | 507.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
