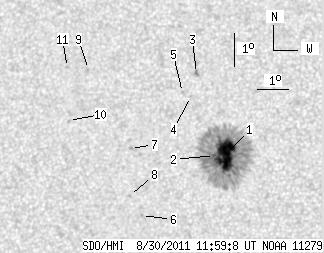

SDO HMI 2011-08-30 11:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.56 | 265.22 | 18.84 | 136.79 | 13.90 | 291.61 | -14.90 | 64.00 | 0.2790 | -663.4 | -357.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-30 11:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.57 | 253.12 | 18.33 | 130.45 | 13.85 | 291.75 | -14.76 | 63.99 | 0.2765 | -1281.1 | -406.1 | |
| 0.99 | -1.00 | 0.51 | -1.00 | 13.81 | 291.40 | -15.12 | 64.61 | 0.2816 | -808.2 | 999999 | |
| 0.00 | 3.05 | 0.00 | 1.59 | 16.29 | 290.63 | -15.89 | 58.10 | 0.3108 | 911.0 | 637.1 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 15.58 | 290.49 | -16.03 | 60.35 | 0.3073 | -598.0 | -423.7 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 15.70 | 290.22 | -16.30 | 60.40 | 0.3121 | 742.0 | 552.8 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 11.91 | 289.17 | -17.35 | 73.13 | 0.3063 | 726.0 | 523.1 | |
| 0.00 | 1.25 | 0.00 | 0.66 | 13.93 | 288.66 | -17.86 | 67.40 | 0.3238 | 753.0 | 657.1 | |
| 0.00 | 1.25 | 0.00 | 0.65 | 12.50 | 288.74 | -17.78 | 71.62 | 0.3156 | 864.0 | 618.9 | |
| 0.00 | 1.34 | 0.00 | 0.71 | 16.29 | 287.06 | -19.46 | 62.62 | 0.3617 | 669.0 | 482.0 | |
| 0.00 | 0.90 | 0.00 | 0.48 | 14.70 | 286.55 | -19.97 | 67.23 | 0.3599 | 703.0 | 599.2 | |
| 0.00 | 1.16 | 0.00 | 0.62 | 16.32 | 286.35 | -20.17 | 63.26 | 0.3721 | 656.0 | 554.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
