SDO HMI 2011-08-30 11:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.83 | 0.00 | 5.94 | 19.27 | 328.28 | 21.76 | 302.57 | 0.4261 | 56.2 | -3.0 | |
|
previous
or next observation for the same group /

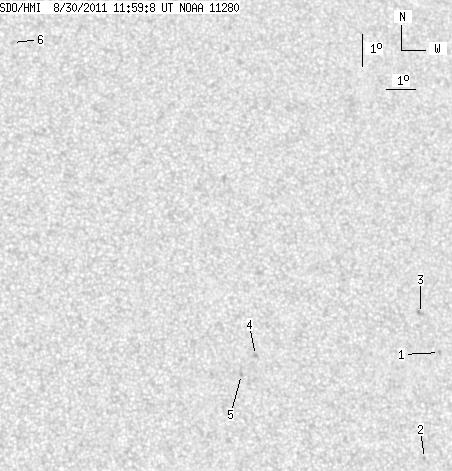

back to the solar disc SDO HMI 2011-08-30 11:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.43 | 0.00 | 0.80 | 17.49 | 333.06 | 26.54 | 294.26 | 0.4694 | -626.0 | -579.9 | |
| 0.00 | 1.52 | 0.00 | 0.84 | 14.29 | 332.09 | 25.57 | 288.02 | 0.4416 | -798.0 | -604.6 | |
| 0.00 | 2.42 | 0.00 | 1.36 | 18.73 | 332.58 | 26.07 | 297.07 | 0.4693 | -679.0 | -598.3 | |
| 0.00 | 2.15 | 0.00 | 1.15 | 17.70 | 326.72 | 20.20 | 300.08 | 0.3817 | 776.0 | 564.3 | |
| 0.00 | 1.25 | 0.00 | 0.67 | 17.14 | 326.18 | 19.66 | 299.30 | 0.3703 | 900.0 | 671.6 | |
| 0.00 | 2.06 | 0.00 | 1.12 | 27.82 | 319.62 | 13.11 | 330.60 | 0.4102 | 764.0 | 597.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
