SDO HMI 2011-08-30 12:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.40 | 42.18 | 13.51 | 34.72 | 18.48 | 359.23 | 53.27 | 287.80 | 0.8004 | -418.2 | -264.2 | |
|
previous
or next observation for the same group /

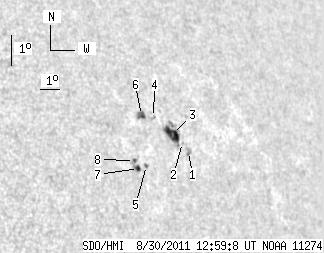

back to the solar disc SDO HMI 2011-08-30 12:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.49 | 0.00 | 2.94 | 17.98 | 0.36 | 54.39 | 287.06 | 0.8111 | -17.0 | -63.0 | |
| 0.00 | 0.99 | 0.00 | 0.83 | 18.28 | 0.16 | 54.20 | 287.45 | 0.8095 | -268.0 | -335.8 | |
| 13.08 | 22.75 | 10.88 | 18.95 | 18.57 | 359.75 | 53.79 | 287.85 | 0.8057 | -741.2 | -427.4 | |
| 0.00 | 1.34 | 0.00 | 1.10 | 19.18 | 359.01 | 53.04 | 288.69 | 0.7989 | -672.0 | -647.7 | |
| 0.00 | 1.43 | 0.00 | 1.15 | 17.77 | 358.02 | 52.05 | 287.02 | 0.7876 | 465.0 | 348.5 | |
| 0.00 | 5.64 | 0.00 | 4.57 | 19.30 | 358.42 | 52.46 | 288.91 | 0.7933 | -772.0 | -651.6 | |
| 2.42 | 6.54 | 1.92 | 5.18 | 17.71 | 357.58 | 51.62 | 287.00 | 0.7831 | 637.9 | 627.2 | |
| 0.90 | -7.00 | 0.71 | -7.00 | 17.97 | 357.48 | 51.52 | 287.34 | 0.7823 | 509.8 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
