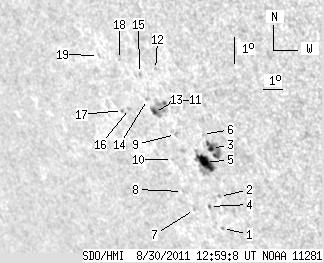

SDO HMI 2011-08-30 12:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.64 | 74.27 | 15.50 | 62.14 | -20.29 | 259.04 | -46.93 | 121.75 | 0.8079 | 210.2 | 73.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-30 12:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.92 | -23.19 | 259.50 | -46.46 | 125.17 | 0.8173 | -542.0 | -467.8 | |
| 0.00 | 1.34 | 0.00 | 1.13 | -22.06 | 259.86 | -46.11 | 124.12 | 0.8090 | 600.0 | 479.2 | |
| 2.06 | 14.78 | 1.69 | 12.08 | -20.40 | 260.15 | -45.81 | 122.44 | 0.7986 | 746.2 | 697.1 | |
| 0.00 | 1.43 | 0.00 | 1.22 | -22.46 | 259.21 | -46.76 | 124.22 | 0.8164 | 273.0 | 321.2 | |
| 13.71 | 26.70 | 11.39 | 22.24 | -20.92 | 259.67 | -46.30 | 122.76 | 0.8052 | 653.5 | 140.8 | |
| 0.00 | 0.45 | 0.00 | 0.37 | -19.95 | 259.91 | -46.06 | 121.80 | 0.7987 | 554.0 | 458.8 | |
| 0.00 | 1.25 | 0.00 | 1.09 | -22.64 | 258.40 | -47.57 | 124.00 | 0.8238 | 349.0 | 303.4 | |
| 0.00 | 0.27 | 0.00 | 0.23 | -22.06 | 258.08 | -47.89 | 123.20 | 0.8239 | 379.0 | 319.0 | |
| 0.00 | 1.43 | 0.00 | 1.21 | -20.08 | 258.58 | -47.38 | 121.27 | 0.8109 | 370.0 | 339.6 | |
| 0.00 | 0.81 | 0.00 | 0.69 | -20.97 | 258.07 | -47.90 | 122.01 | 0.8192 | 519.0 | 428.7 | |
| 1.08 | 17.11 | 0.90 | 14.43 | -19.02 | 258.47 | -47.50 | 120.03 | 0.8072 | 208.2 | -313.2 | |
| 0.00 | 0.99 | 0.00 | 0.81 | -17.93 | 258.44 | -47.52 | 118.77 | 0.8028 | -549.0 | -424.3 | |
| 1.79 | -11.00 | 1.52 | -11.00 | -19.41 | 257.84 | -48.13 | 120.16 | 0.8145 | -564.2 | 999999 | |
| 0.00 | 1.34 | 0.00 | 1.14 | -19.00 | 257.66 | -48.30 | 119.61 | 0.8143 | -738.0 | -625.7 | |
| 0.00 | 0.99 | 0.00 | 0.83 | -18.14 | 257.60 | -48.36 | 118.62 | 0.8113 | -627.0 | -523.7 | |
| 0.00 | 1.52 | 0.00 | 1.33 | -19.40 | 256.62 | -49.35 | 119.57 | 0.8249 | -617.0 | -563.4 | |
| 0.00 | 1.16 | 0.00 | 1.03 | -19.51 | 256.23 | -49.74 | 119.51 | 0.8287 | -583.0 | -521.1 | |
| 0.00 | 0.72 | 0.00 | 0.61 | -17.76 | 256.77 | -49.19 | 117.80 | 0.8171 | -510.0 | -348.4 | |
| 0.00 | 0.90 | 0.00 | 0.78 | -17.73 | 255.75 | -50.22 | 117.31 | 0.8260 | -503.0 | -455.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
