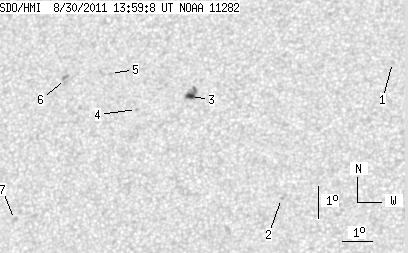

SDO HMI 2011-08-30 13:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.21 | 22.57 | 2.20 | 11.79 | 24.19 | 298.76 | -6.66 | 19.76 | 0.3180 | -121.1 | 79.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-30 13:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.16 | 0.00 | 0.61 | 25.76 | 307.05 | 1.63 | 355.41 | 0.3217 | 650.0 | 526.4 | |
| 0.00 | 0.72 | 0.00 | 0.37 | 21.47 | 303.38 | -2.03 | 7.59 | 0.2507 | -703.0 | -668.9 | |
| 4.21 | 10.03 | 2.20 | 5.23 | 24.66 | 300.30 | -5.12 | 15.05 | 0.3134 | -1020.6 | -773.5 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 24.22 | 298.52 | -6.90 | 20.41 | 0.3156 | -813.0 | -651.0 | |
| 0.00 | 1.52 | 0.00 | 0.80 | 25.35 | 297.57 | -7.84 | 21.47 | 0.3383 | 798.0 | 573.5 | |
| 0.00 | 4.93 | 0.00 | 2.60 | 25.14 | 296.07 | -9.35 | 25.36 | 0.3449 | 496.0 | 727.6 | |
| 0.00 | 3.22 | 0.00 | 1.67 | 20.70 | 294.70 | -10.72 | 36.36 | 0.2948 | 824.0 | 612.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
