SDO HMI 2011-08-30 14:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39.23 | 253.71 | 20.07 | 129.89 | 13.89 | 291.67 | -13.19 | 61.47 | 0.2535 | -847.0 | -392.3 | |
|
previous
or next observation for the same group /

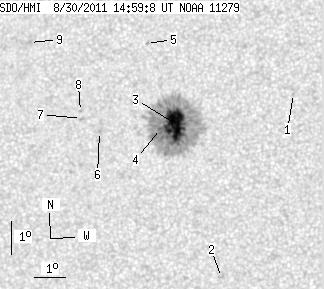

back to the solar disc SDO HMI 2011-08-30 14:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.16 | 0.00 | 0.59 | 14.90 | 295.48 | -9.38 | 49.09 | 0.2094 | -752.0 | -554.2 | |
| 0.00 | 2.06 | 0.00 | 1.04 | 9.26 | 293.44 | -11.43 | 78.62 | 0.2004 | -836.0 | -613.0 | |
| 38.87 | 243.77 | 19.89 | 124.76 | 13.90 | 291.74 | -13.12 | 61.29 | 0.2524 | -1275.5 | -424.7 | |
| 0.36 | -3.00 | 0.18 | -3.00 | 13.73 | 291.30 | -13.56 | 62.60 | 0.2577 | -772.0 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.56 | 16.31 | 290.68 | -14.18 | 55.28 | 0.2874 | 828.0 | 668.4 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 13.58 | 289.35 | -15.51 | 65.87 | 0.2861 | 950.0 | 751.0 | |
| 0.00 | 2.06 | 0.00 | 1.07 | 13.96 | 288.74 | -16.12 | 65.41 | 0.2977 | 829.0 | 710.5 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 14.17 | 288.69 | -16.17 | 64.81 | 0.2997 | 629.0 | 478.7 | |
| 0.00 | 1.70 | 0.00 | 0.90 | 16.22 | 286.85 | -18.02 | 61.17 | 0.3405 | 859.0 | 699.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
