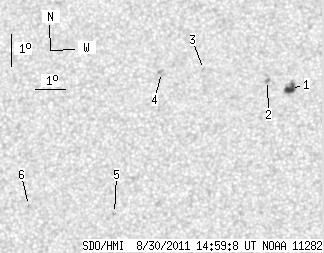

SDO HMI 2011-08-30 14:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.99 | 20.41 | 3.64 | 10.66 | 24.37 | 298.41 | -6.46 | 19.06 | 0.3187 | -185.4 | 90.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-30 14:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.99 | 10.57 | 3.64 | 5.51 | 24.73 | 300.42 | -4.45 | 13.11 | 0.3118 | -1026.4 | -668.9 | |
| 0.00 | 1.97 | 0.00 | 1.03 | 24.97 | 299.64 | -5.23 | 15.07 | 0.3189 | -984.0 | -783.9 | |
| 0.00 | 1.43 | 0.00 | 0.75 | 25.30 | 297.47 | -7.39 | 20.43 | 0.3348 | 830.0 | 659.9 | |
| 0.00 | 3.76 | 0.00 | 1.98 | 25.18 | 296.06 | -8.81 | 24.02 | 0.3418 | 756.0 | 680.8 | |
| 0.00 | 1.34 | 0.00 | 0.69 | 20.71 | 294.81 | -10.06 | 34.65 | 0.2886 | 729.0 | 615.4 | |
| 0.00 | 1.34 | 0.00 | 0.70 | 20.90 | 291.95 | -12.91 | 40.95 | 0.3199 | 803.0 | 594.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
