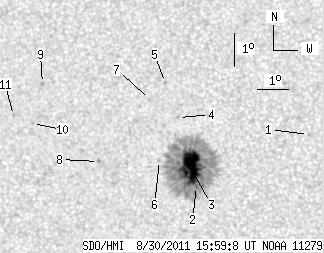

SDO HMI 2011-08-30 15:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.21 | 269.43 | 23.59 | 137.67 | 13.85 | 291.66 | -12.65 | 60.62 | 0.2451 | -835.5 | -348.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-30 15:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.98 | 0.00 | 0.50 | 14.91 | 295.44 | -8.87 | 47.52 | 0.2030 | -786.0 | -544.4 | |
| 0.81 | 259.68 | 0.41 | 132.61 | 13.25 | 291.96 | -12.35 | 62.36 | 0.2361 | -943.2 | -379.1 | |
| 45.40 | -2.00 | 23.18 | -2.00 | 13.82 | 291.74 | -12.57 | 60.60 | 0.2437 | -1282.1 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 15.34 | 291.26 | -13.05 | 56.25 | 0.2630 | -606.0 | -560.3 | |
| 0.00 | 1.16 | 0.00 | 0.60 | 16.39 | 290.77 | -13.54 | 53.87 | 0.2793 | 871.0 | 629.0 | |
| 0.00 | 0.98 | 0.00 | 0.51 | 14.01 | 290.74 | -13.58 | 61.67 | 0.2599 | -597.0 | -441.0 | |
| 0.00 | 0.81 | 0.00 | 0.42 | 15.86 | 290.29 | -14.02 | 56.37 | 0.2811 | 692.0 | 501.6 | |
| 0.00 | 1.34 | 0.00 | 0.69 | 13.92 | 288.78 | -15.53 | 64.81 | 0.2885 | 949.0 | 798.8 | |
| 0.00 | 1.43 | 0.00 | 0.75 | 16.23 | 286.76 | -17.55 | 60.56 | 0.3339 | 865.0 | 728.2 | |
| 0.00 | 1.25 | 0.00 | 0.66 | 15.00 | 286.54 | -17.77 | 64.23 | 0.3288 | 781.0 | 575.8 | |
| 0.00 | 0.90 | 0.00 | 0.47 | 15.22 | 285.89 | -18.42 | 64.33 | 0.3397 | 817.0 | 637.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
