SDO HMI 2011-08-30 16:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.31 | 32.50 | 4.85 | 16.93 | 24.37 | 299.25 | -4.51 | 13.32 | 0.3093 | -44.5 | -132.7 | |
|
previous
or next observation for the same group /

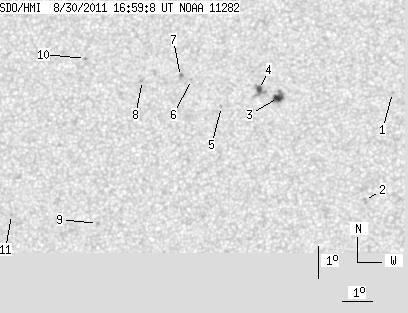

back to the solar disc SDO HMI 2011-08-30 16:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.42 | 24.87 | 304.38 | 0.63 | 358.13 | 0.3059 | 852.0 | 675.4 | |
| 0.00 | 2.69 | 0.00 | 1.37 | 21.47 | 303.46 | -0.30 | 1.13 | 0.2485 | -678.0 | -549.1 | |
| 6.09 | 9.49 | 3.17 | 4.94 | 24.71 | 300.58 | -3.17 | 9.46 | 0.3073 | -1077.1 | -788.1 | |
| 3.22 | 9.49 | 1.68 | 4.95 | 24.96 | 299.94 | -3.81 | 11.15 | 0.3132 | -899.5 | -773.3 | |
| 0.00 | 0.98 | 0.00 | 0.51 | 24.40 | 298.69 | -5.06 | 15.14 | 0.3090 | -677.0 | -524.0 | |
| 0.00 | 0.90 | 0.00 | 0.47 | 25.25 | 297.65 | -6.11 | 17.18 | 0.3272 | 585.0 | 449.3 | |
| 0.00 | 2.33 | 0.00 | 1.22 | 25.34 | 297.28 | -6.48 | 18.06 | 0.3305 | 1013.0 | 784.5 | |
| 0.00 | 1.97 | 0.00 | 1.04 | 25.20 | 296.00 | -7.75 | 21.45 | 0.3353 | 713.0 | 555.0 | |
| 0.00 | 1.34 | 0.00 | 0.69 | 20.67 | 294.79 | -8.97 | 31.80 | 0.2780 | 848.0 | 651.3 | |
| 0.00 | 1.43 | 0.00 | 0.76 | 25.86 | 294.02 | -9.74 | 25.27 | 0.3580 | 847.0 | 710.1 | |
| 0.00 | 1.07 | 0.00 | 0.56 | 20.89 | 291.94 | -11.81 | 38.55 | 0.3082 | 807.0 | 581.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
