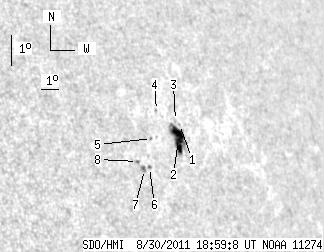

SDO HMI 2011-08-30 18:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.01 | 37.32 | 15.35 | 33.37 | 18.33 | 359.51 | 56.86 | 287.29 | 0.8345 | -431.7 | -158.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-30 18:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.81 | 18.77 | 0.17 | 57.52 | 287.76 | 0.8408 | -282.0 | -222.9 | |
| 17.01 | 27.12 | 15.35 | 24.48 | 18.35 | 359.89 | 57.24 | 287.29 | 0.8381 | -694.4 | -492.7 | |
| 0.00 | 1.61 | 0.00 | 1.46 | 18.91 | 0.01 | 57.36 | 287.94 | 0.8394 | -367.0 | -271.4 | |
| 0.00 | 1.07 | 0.00 | 0.95 | 19.32 | 359.10 | 56.45 | 288.50 | 0.8315 | -496.0 | -362.9 | |
| 0.00 | 1.16 | 0.00 | 1.01 | 18.51 | 358.40 | 55.75 | 287.58 | 0.8244 | 506.0 | 361.6 | |
| 0.00 | 1.52 | 0.00 | 1.31 | 17.65 | 357.87 | 55.22 | 286.58 | 0.8189 | 427.0 | 317.9 | |
| 0.00 | 2.24 | 0.00 | 1.91 | 17.61 | 357.58 | 54.93 | 286.56 | 0.8160 | 639.0 | 547.6 | |
| 0.00 | 1.70 | 0.00 | 1.44 | 17.89 | 357.32 | 54.67 | 286.92 | 0.8137 | 583.0 | 507.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
