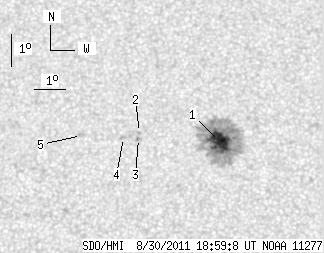

SDO HMI 2011-08-30 18:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.77 | 164.80 | 13.53 | 83.35 | 18.29 | 299.51 | -3.14 | 14.99 | 0.2013 | -1115.7 | -441.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-30 18:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.77 | 156.57 | 13.53 | 79.16 | 18.28 | 299.68 | -2.97 | 14.29 | 0.2001 | -1301.3 | -457.5 | |
| 0.00 | 1.25 | 0.00 | 0.64 | 18.53 | 297.12 | -5.53 | 24.80 | 0.2188 | -760.0 | -617.5 | |
| 0.00 | 1.70 | 0.00 | 0.86 | 18.35 | 297.09 | -5.56 | 25.28 | 0.2162 | -1083.0 | -860.4 | |
| 0.00 | 2.06 | 0.00 | 1.05 | 18.37 | 296.61 | -6.04 | 27.10 | 0.2202 | -742.0 | -614.6 | |
| 0.00 | 3.22 | 0.00 | 1.64 | 18.42 | 295.26 | -7.39 | 31.88 | 0.2321 | 633.0 | 613.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
