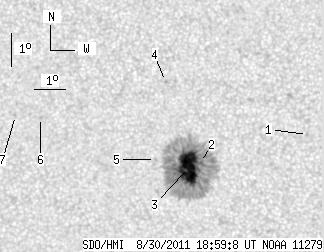

SDO HMI 2011-08-30 18:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.67 | 263.08 | 22.68 | 133.60 | 13.88 | 291.71 | -10.94 | 57.05 | 0.2205 | -1074.0 | -395.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-30 18:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.52 | 0.00 | 0.77 | 14.92 | 295.46 | -7.19 | 41.65 | 0.1828 | -880.0 | -692.4 | |
| 1.34 | 256.74 | 0.68 | 130.34 | 14.00 | 292.11 | -10.54 | 55.66 | 0.2159 | -1001.8 | -412.3 | |
| 43.33 | -2.00 | 22.00 | -2.00 | 13.84 | 291.74 | -10.91 | 57.17 | 0.2197 | -1369.7 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.69 | 16.45 | 290.86 | -11.79 | 50.07 | 0.2566 | 907.0 | 647.7 | |
| 0.00 | 0.98 | 0.00 | 0.50 | 14.06 | 290.68 | -11.97 | 58.60 | 0.2368 | -736.0 | -598.5 | |
| 0.00 | 1.25 | 0.00 | 0.65 | 15.23 | 286.90 | -15.75 | 61.03 | 0.3007 | 954.0 | 752.1 | |
| 0.00 | 1.25 | 0.00 | 0.65 | 15.27 | 286.08 | -16.57 | 62.04 | 0.3129 | 841.0 | 630.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
