SDO HMI 2011-08-30 18:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.74 | 109.01 | 27.47 | 86.30 | -20.03 | 258.54 | -44.11 | 122.97 | 0.7817 | 110.9 | -31.2 | |
|
previous
or next observation for the same group /

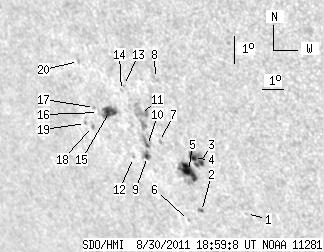

back to the solar disc SDO HMI 2011-08-30 18:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.27 | 0.00 | 0.21 | -22.15 | 261.75 | -40.91 | 127.25 | 0.7643 | 383.0 | 478.3 | |
| 0.72 | 2.24 | 0.57 | 1.77 | -22.26 | 259.72 | -42.93 | 126.13 | 0.7828 | 536.6 | 508.1 | |
| 4.39 | 16.20 | 3.39 | 12.50 | -20.57 | 260.24 | -42.41 | 124.56 | 0.7689 | 809.1 | 675.4 | |
| 1.88 | -3.00 | 1.45 | -3.00 | -20.42 | 260.03 | -42.62 | 124.26 | 0.7700 | 797.7 | 999999 | |
| 14.86 | 29.45 | 11.62 | 23.10 | -20.90 | 259.64 | -43.01 | 124.57 | 0.7761 | 716.9 | 139.0 | |
| 0.00 | 0.98 | 0.00 | 0.79 | -22.63 | 258.99 | -43.67 | 126.12 | 0.7911 | 501.0 | 342.8 | |
| 0.00 | 1.07 | 0.00 | 0.85 | -19.97 | 258.68 | -43.97 | 122.97 | 0.7801 | 617.0 | 471.6 | |
| 0.00 | 2.95 | 0.00 | 2.26 | -17.83 | 259.21 | -43.44 | 120.78 | 0.7642 | -588.0 | -517.5 | |
| 1.79 | 6.53 | 1.44 | 5.26 | -20.55 | 257.92 | -44.73 | 123.20 | 0.7897 | 505.7 | 44.2 | |
| 1.07 | 6.36 | 0.86 | 5.07 | -20.17 | 258.07 | -44.58 | 122.84 | 0.7865 | 424.7 | 180.3 | |
| 0.00 | 19.43 | 0.00 | 15.34 | -19.12 | 258.12 | -44.53 | 121.68 | 0.7809 | -446.0 | -339.3 | |
| 0.00 | 0.81 | 0.00 | 0.66 | -20.65 | 257.24 | -45.41 | 122.94 | 0.7962 | 183.0 | 94.4 | |
| 0.00 | 0.81 | 0.00 | 0.64 | -18.20 | 257.66 | -44.99 | 120.37 | 0.7807 | -602.0 | -554.4 | |
| 0.00 | 1.25 | 0.00 | 0.99 | -18.38 | 257.51 | -45.14 | 120.50 | 0.7830 | -675.0 | -548.0 | |
| 10.03 | 13.96 | 8.14 | 11.33 | -19.15 | 256.69 | -45.96 | 120.96 | 0.7941 | -719.0 | -438.8 | |
| 0.00 | 1.34 | 0.00 | 1.10 | -19.24 | 256.15 | -46.50 | 120.78 | 0.7994 | -475.0 | -374.1 | |
| 0.00 | 1.07 | 0.00 | 0.88 | -19.09 | 256.02 | -46.63 | 120.54 | 0.7999 | -459.0 | -477.6 | |
| 0.00 | 1.97 | 0.00 | 1.64 | -19.75 | 255.67 | -46.98 | 121.12 | 0.8060 | -628.0 | -405.2 | |
| 0.00 | 0.98 | 0.00 | 0.82 | -19.68 | 255.37 | -47.29 | 120.88 | 0.8083 | -527.0 | -441.8 | |
| 0.00 | 1.34 | 0.00 | 1.09 | -17.58 | 255.80 | -46.85 | 118.71 | 0.7952 | -573.0 | -405.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
