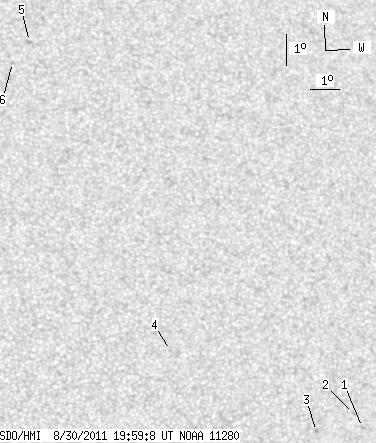

SDO HMI 2011-08-30 19:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.86 | 0.00 | 4.85 | 22.34 | 321.11 | 19.01 | 311.26 | 0.4235 | 518.5 | 246.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-30 19:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.24 | 0.00 | 1.23 | 17.06 | 325.94 | 23.84 | 295.21 | 0.4289 | 746.0 | 551.2 | |
| 0.00 | 1.07 | 0.00 | 0.59 | 17.50 | 325.69 | 23.59 | 296.39 | 0.4278 | 630.0 | 535.8 | |
| 0.00 | 1.25 | 0.00 | 0.68 | 17.01 | 324.35 | 22.25 | 296.41 | 0.4060 | 846.0 | 696.4 | |
| 0.00 | 0.72 | 0.00 | 0.38 | 19.70 | 319.72 | 17.62 | 307.99 | 0.3632 | 784.0 | 587.6 | |
| 0.00 | 2.33 | 0.00 | 1.28 | 29.66 | 316.12 | 14.02 | 331.38 | 0.4414 | -775.0 | -706.8 | |
| 0.00 | 1.25 | 0.00 | 0.69 | 28.99 | 315.42 | 13.32 | 331.72 | 0.4273 | 880.0 | 603.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
