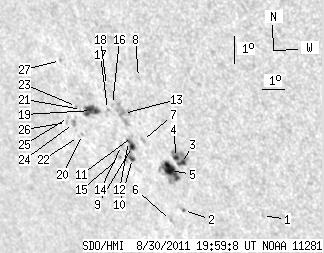

SDO HMI 2011-08-30 19:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.41 | 114.22 | 29.34 | 89.65 | -20.07 | 258.48 | -43.62 | 123.30 | 0.7775 | 64.9 | -2.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-30 19:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.66 | -22.11 | 263.16 | -38.94 | 128.51 | 0.7464 | -370.0 | -343.0 | |
| 0.98 | 1.97 | 0.77 | 1.55 | -22.24 | 259.70 | -42.40 | 126.44 | 0.7780 | 515.7 | 496.9 | |
| 3.13 | 18.44 | 2.40 | 14.09 | -20.60 | 260.20 | -41.90 | 124.89 | 0.7644 | 843.0 | 646.7 | |
| 1.61 | -3.00 | 1.23 | -3.00 | -20.41 | 260.05 | -42.05 | 124.58 | 0.7647 | 792.1 | 999999 | |
| 15.13 | 27.39 | 11.72 | 21.26 | -20.88 | 259.62 | -42.48 | 124.87 | 0.7713 | 725.4 | 198.5 | |
| 0.00 | 1.61 | 0.00 | 1.29 | -22.65 | 258.96 | -43.14 | 126.45 | 0.7867 | 520.0 | 263.2 | |
| 0.00 | 2.15 | 0.00 | 1.67 | -19.95 | 258.70 | -43.39 | 123.27 | 0.7747 | 677.0 | 441.0 | |
| 0.00 | 1.25 | 0.00 | 0.95 | -17.81 | 259.22 | -42.88 | 121.08 | 0.7587 | -607.0 | -559.4 | |
| 2.60 | 12.89 | 2.05 | 10.23 | -20.20 | 258.17 | -43.93 | 123.26 | 0.7808 | 631.8 | 287.6 | |
| 2.51 | -9.00 | 1.99 | -9.00 | -20.62 | 258.02 | -44.08 | 123.64 | 0.7843 | 581.1 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.70 | -19.86 | 258.29 | -43.81 | 122.93 | 0.7779 | 455.0 | 275.3 | |
| 1.16 | -9.00 | 0.92 | -9.00 | -20.05 | 258.04 | -44.05 | 123.01 | 0.7812 | 251.3 | 999999 | |
| 0.00 | 17.19 | 0.00 | 13.43 | -19.10 | 258.15 | -43.95 | 121.98 | 0.7754 | -493.0 | -354.2 | |
| 0.00 | 1.52 | 0.00 | 1.21 | -20.22 | 257.67 | -44.43 | 122.99 | 0.7854 | -320.0 | -315.1 | |
| 0.00 | 1.34 | 0.00 | 1.08 | -20.65 | 257.42 | -44.68 | 123.34 | 0.7898 | 296.0 | 73.2 | |
| 0.00 | 0.98 | 0.00 | 0.77 | -18.84 | 257.74 | -44.35 | 121.46 | 0.7779 | -702.0 | -653.5 | |
| 0.00 | 0.98 | 0.00 | 0.78 | -19.03 | 257.45 | -44.64 | 121.52 | 0.7815 | -622.0 | -501.3 | |
| 0.00 | 0.81 | 0.00 | 0.63 | -18.21 | 257.68 | -44.42 | 120.70 | 0.7754 | -643.0 | -588.0 | |
| 10.29 | 14.23 | 8.26 | 11.43 | -19.14 | 256.69 | -45.41 | 121.23 | 0.7890 | -709.3 | -475.5 | |
| 0.00 | 0.45 | 0.00 | 0.37 | -20.01 | 255.95 | -46.15 | 121.83 | 0.7998 | -585.0 | -502.2 | |
| 0.00 | 1.88 | 0.00 | 1.52 | -19.15 | 256.22 | -45.87 | 121.00 | 0.7933 | -264.0 | -392.2 | |
| 0.00 | 0.72 | 0.00 | 0.59 | -20.10 | 255.73 | -46.37 | 121.82 | 0.8021 | -337.0 | -277.5 | |
| 0.00 | 0.90 | 0.00 | 0.73 | -19.06 | 256.02 | -46.08 | 120.80 | 0.7948 | -554.0 | -519.2 | |
| 0.00 | 2.42 | 0.00 | 1.99 | -19.67 | 255.66 | -46.44 | 121.30 | 0.8008 | -702.0 | -510.7 | |
| 0.00 | 1.07 | 0.00 | 0.89 | -19.48 | 255.50 | -46.60 | 121.01 | 0.8014 | -361.0 | -302.0 | |
| 0.00 | 1.25 | 0.00 | 1.04 | -19.66 | 255.33 | -46.77 | 121.13 | 0.8037 | -453.0 | -398.1 | |
| 0.00 | 0.98 | 0.00 | 0.79 | -17.56 | 255.81 | -46.29 | 118.97 | 0.7900 | -517.0 | -429.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
