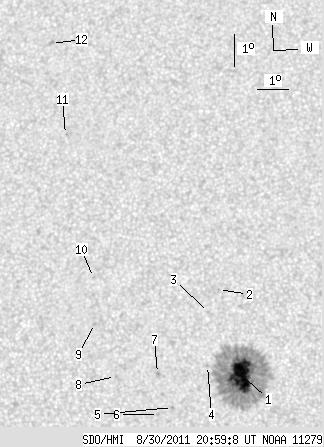

SDO HMI 2011-08-30 20:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.04 | 277.50 | 22.28 | 140.57 | 13.98 | 291.56 | -9.98 | 54.46 | 0.2078 | -695.6 | -353.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-30 20:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.04 | 264.98 | 22.28 | 134.07 | 13.84 | 291.74 | -9.80 | 54.47 | 0.2040 | -1373.5 | -405.2 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 16.45 | 290.88 | -10.66 | 47.35 | 0.2423 | 838.0 | 582.9 | |
| 0.00 | 0.98 | 0.00 | 0.50 | 15.74 | 290.60 | -10.94 | 50.37 | 0.2383 | 753.0 | 468.5 | |
| 0.00 | 1.07 | 0.00 | 0.55 | 14.13 | 290.65 | -10.89 | 56.06 | 0.2219 | -577.0 | -450.8 | |
| 0.00 | 1.07 | 0.00 | 0.55 | 12.82 | 289.60 | -11.94 | 63.37 | 0.2267 | 848.0 | 650.8 | |
| 0.00 | 1.07 | 0.00 | 0.55 | 12.60 | 289.17 | -12.37 | 65.01 | 0.2317 | 839.0 | 634.0 | |
| 0.00 | 1.25 | 0.00 | 0.64 | 13.84 | 289.08 | -12.47 | 60.40 | 0.2422 | 860.0 | 752.3 | |
| 0.00 | 1.07 | 0.00 | 0.55 | 13.71 | 287.74 | -13.81 | 63.12 | 0.2611 | 830.0 | 685.8 | |
| 0.00 | 1.25 | 0.00 | 0.65 | 15.31 | 286.96 | -14.59 | 59.08 | 0.2844 | 966.0 | 759.4 | |
| 0.00 | 0.72 | 0.00 | 0.37 | 16.72 | 286.82 | -14.73 | 55.11 | 0.2981 | 839.0 | 596.5 | |
| 0.00 | 0.54 | 0.00 | 0.28 | 21.10 | 285.47 | -16.07 | 46.47 | 0.3577 | 602.0 | 550.8 | |
| 0.00 | 2.60 | 0.00 | 1.40 | 23.93 | 284.65 | -16.90 | 42.16 | 0.3975 | 653.0 | 564.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
