SDO HMI 2011-08-30 20:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.18 | 114.65 | 27.34 | 89.29 | -20.08 | 258.36 | -43.18 | 123.56 | 0.7735 | 82.6 | -8.2 | |
|
previous
or next observation for the same group /

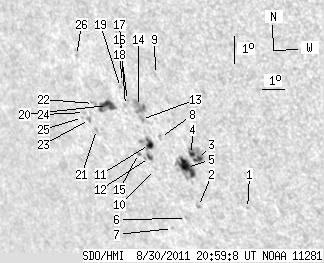

back to the solar disc SDO HMI 2011-08-30 20:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.07 | 0.00 | 0.81 | -22.11 | 261.81 | -39.73 | 127.98 | 0.7536 | 530.0 | 425.0 | |
| 0.00 | 1.79 | 0.00 | 1.39 | -22.23 | 259.65 | -41.90 | 126.73 | 0.7736 | 682.0 | 558.8 | |
| 3.13 | 16.56 | 2.38 | 12.53 | -20.58 | 260.18 | -41.36 | 125.20 | 0.7594 | 858.2 | 659.7 | |
| 2.15 | -3.00 | 1.63 | -3.00 | -20.43 | 259.97 | -41.57 | 124.90 | 0.7605 | 787.8 | 999999 | |
| 13.79 | 25.87 | 10.59 | 19.90 | -20.90 | 259.59 | -41.95 | 125.21 | 0.7666 | 763.8 | 265.7 | |
| 0.00 | 1.34 | 0.00 | 1.06 | -22.70 | 258.93 | -42.61 | 126.83 | 0.7825 | 489.0 | 331.8 | |
| 0.00 | 1.16 | 0.00 | 0.94 | -23.12 | 258.14 | -43.41 | 126.81 | 0.7916 | 468.0 | 336.5 | |
| 0.00 | 2.24 | 0.00 | 1.73 | -19.96 | 258.78 | -42.77 | 123.65 | 0.7690 | 625.0 | 498.1 | |
| 0.00 | 1.34 | 0.00 | 1.01 | -17.82 | 259.24 | -42.31 | 121.42 | 0.7532 | -630.0 | -534.9 | |
| 0.00 | 0.90 | 0.00 | 0.71 | -21.10 | 258.15 | -43.39 | 124.58 | 0.7807 | 449.0 | 299.9 | |
| 3.58 | 14.68 | 2.80 | 11.52 | -20.25 | 258.19 | -43.36 | 123.64 | 0.7759 | 596.6 | 172.9 | |
| 1.97 | -11.00 | 1.55 | -11.00 | -20.70 | 258.03 | -43.52 | 124.06 | 0.7797 | 656.6 | 999999 | |
| 0.00 | 2.95 | 0.00 | 2.29 | -19.42 | 258.12 | -43.43 | 122.64 | 0.7722 | -564.0 | -378.5 | |
| 0.00 | 11.55 | 0.00 | 8.92 | -18.98 | 258.13 | -43.41 | 122.15 | 0.7698 | -603.0 | -393.7 | |
| 0.00 | 2.86 | 0.00 | 2.27 | -20.61 | 257.57 | -43.98 | 123.69 | 0.7834 | -262.0 | -147.7 | |
| 0.00 | 0.98 | 0.00 | 0.77 | -18.82 | 257.70 | -43.85 | 121.72 | 0.7731 | -772.0 | -645.8 | |
| 0.00 | 1.52 | 0.00 | 1.19 | -19.00 | 257.55 | -44.00 | 121.84 | 0.7754 | -539.0 | -536.4 | |
| 0.00 | 0.90 | 0.00 | 0.69 | -18.22 | 257.67 | -43.88 | 121.01 | 0.7704 | -624.0 | -540.1 | |
| 0.00 | 0.98 | 0.00 | 0.77 | -18.40 | 257.52 | -44.02 | 121.14 | 0.7727 | -722.0 | -600.0 | |
| 10.56 | 14.77 | 8.39 | 11.74 | -19.08 | 256.71 | -44.83 | 121.47 | 0.7835 | -681.3 | -483.5 | |
| 0.00 | 1.88 | 0.00 | 1.53 | -19.96 | 255.89 | -45.66 | 122.04 | 0.7952 | -541.0 | -437.3 | |
| 0.00 | 2.51 | 0.00 | 2.01 | -19.07 | 256.07 | -45.47 | 121.13 | 0.7893 | -551.0 | -459.8 | |
| 0.00 | 2.78 | 0.00 | 2.26 | -19.64 | 255.68 | -45.86 | 121.57 | 0.7955 | -706.0 | -557.9 | |
| 0.00 | 1.34 | 0.00 | 1.09 | -19.42 | 255.53 | -46.01 | 121.24 | 0.7959 | -296.0 | -271.9 | |
| 0.00 | 0.98 | 0.00 | 0.81 | -19.60 | 255.37 | -46.17 | 121.37 | 0.7982 | -473.0 | -394.0 | |
| 0.00 | 1.70 | 0.00 | 1.35 | -17.50 | 255.83 | -45.71 | 119.19 | 0.7843 | -439.0 | -297.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
