SDO HMI 2011-08-30 22:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.17 | 147.08 | 32.22 | 112.47 | -19.98 | 258.26 | -42.18 | 124.04 | 0.7638 | 53.5 | -54.6 | |
|
previous
or next observation for the same group /

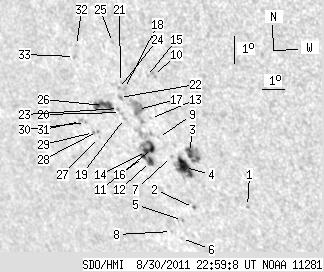

back to the solar disc SDO HMI 2011-08-30 22:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.07 | 0.00 | 0.79 | -22.00 | 261.87 | -38.57 | 128.65 | 0.7424 | 577.0 | 456.2 | |
| 0.98 | 1.52 | 0.75 | 1.17 | -22.24 | 259.49 | -40.95 | 127.34 | 0.7653 | 700.9 | 661.5 | |
| 5.46 | 16.83 | 4.07 | 12.53 | -20.33 | 259.97 | -40.47 | 125.47 | 0.7497 | 763.8 | 717.8 | |
| 14.15 | 25.07 | 10.67 | 18.94 | -20.87 | 259.58 | -40.86 | 125.85 | 0.7565 | 759.8 | 312.1 | |
| 0.00 | 0.98 | 0.00 | 0.77 | -22.75 | 258.82 | -41.62 | 127.49 | 0.7741 | 449.0 | 282.1 | |
| 0.00 | 0.98 | 0.00 | 0.78 | -23.40 | 258.53 | -41.91 | 128.02 | 0.7804 | 452.0 | 306.3 | |
| 0.00 | 1.25 | 0.00 | 0.95 | -20.53 | 259.13 | -41.31 | 125.18 | 0.7587 | 487.0 | 325.1 | |
| 0.00 | 0.81 | 0.00 | 0.64 | -23.19 | 258.17 | -42.27 | 127.57 | 0.7823 | 379.0 | 354.0 | |
| 0.00 | 0.54 | 0.00 | 0.41 | -19.92 | 258.76 | -41.68 | 124.26 | 0.7587 | 676.0 | 639.3 | |
| 0.00 | 2.42 | 0.00 | 1.78 | -17.82 | 259.19 | -41.25 | 122.05 | 0.7429 | -705.0 | -611.2 | |
| 2.69 | 36.08 | 2.06 | 27.74 | -20.33 | 258.37 | -42.07 | 124.49 | 0.7646 | 776.8 | 83.1 | |
| 4.39 | -11.00 | 3.39 | -11.00 | -20.79 | 258.12 | -42.32 | 124.87 | 0.7694 | 677.3 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.61 | -19.30 | 258.62 | -41.82 | 123.45 | 0.7566 | 466.0 | 366.3 | |
| 1.97 | -11.00 | 1.52 | -11.00 | -20.46 | 258.06 | -42.38 | 124.45 | 0.7681 | 522.7 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.20 | -17.88 | 258.88 | -41.56 | 121.93 | 0.7463 | -461.0 | -532.3 | |
| 0.98 | -11.00 | 0.76 | -11.00 | -20.68 | 257.85 | -42.59 | 124.58 | 0.7712 | 199.8 | 999999 | |
| 0.00 | 19.16 | 0.00 | 14.54 | -19.04 | 258.14 | -42.30 | 122.86 | 0.7597 | -638.0 | -357.2 | |
| 0.00 | 1.88 | 0.00 | 1.43 | -18.37 | 257.78 | -42.66 | 121.88 | 0.7596 | -817.0 | -685.3 | |
| 0.00 | 1.70 | 0.00 | 1.31 | -19.40 | 257.45 | -42.99 | 122.88 | 0.7681 | -548.0 | -412.8 | |
| 0.00 | 2.15 | 0.00 | 1.66 | -19.21 | 257.34 | -43.10 | 122.60 | 0.7682 | -407.0 | -447.1 | |
| 0.00 | 1.07 | 0.00 | 0.81 | -18.19 | 257.66 | -42.78 | 121.59 | 0.7597 | -723.0 | -625.8 | |
| 0.00 | 1.97 | 0.00 | 1.51 | -18.70 | 257.46 | -42.98 | 122.07 | 0.7644 | -734.0 | -644.5 | |
| 0.00 | 1.16 | 0.00 | 0.90 | -19.08 | 257.29 | -43.15 | 122.42 | 0.7679 | -710.0 | -642.9 | |
| 0.00 | 0.72 | 0.00 | 0.55 | -18.40 | 257.51 | -42.93 | 121.75 | 0.7623 | -760.0 | -636.4 | |
| 0.00 | 0.90 | 0.00 | 0.67 | -16.86 | 257.71 | -42.73 | 120.04 | 0.7525 | -616.0 | -548.2 | |
| 11.55 | 17.64 | 9.00 | 13.75 | -19.04 | 256.64 | -43.80 | 122.01 | 0.7738 | -708.3 | -451.9 | |
| 0.00 | 0.81 | 0.00 | 0.64 | -20.17 | 256.07 | -44.37 | 122.98 | 0.7847 | -518.0 | -404.6 | |
| 0.00 | 1.25 | 0.00 | 1.00 | -19.97 | 256.05 | -44.39 | 122.74 | 0.7839 | -816.0 | -623.9 | |
| 0.00 | 1.25 | 0.00 | 1.00 | -20.02 | 255.85 | -44.59 | 122.69 | 0.7859 | -498.0 | -427.4 | |
| 0.00 | 1.07 | 0.00 | 0.86 | -19.71 | 255.60 | -44.84 | 122.20 | 0.7867 | -402.0 | -372.1 | |
| 0.00 | 2.95 | 0.00 | 2.37 | -19.70 | 255.38 | -45.06 | 122.06 | 0.7886 | -513.0 | -406.5 | |
| 0.00 | 1.34 | 0.00 | 1.04 | -17.11 | 256.06 | -44.38 | 119.43 | 0.7699 | -447.0 | -329.7 | |
| 0.00 | 1.43 | 0.00 | 1.12 | -17.49 | 255.85 | -44.59 | 119.77 | 0.7737 | -323.0 | -264.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
