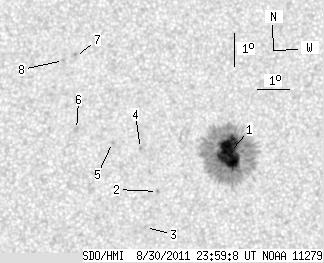

SDO HMI 2011-08-30 23:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.40 | 260.65 | 22.87 | 131.38 | 13.89 | 291.58 | -8.31 | 49.80 | 0.1843 | -841.9 | -360.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-30 23:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.40 | 249.82 | 22.87 | 125.84 | 13.86 | 291.75 | -8.14 | 49.45 | 0.1817 | -1352.5 | -416.4 | |
| 0.00 | 1.34 | 0.00 | 0.68 | 12.63 | 289.53 | -10.36 | 61.07 | 0.2014 | 889.0 | 723.9 | |
| 0.00 | 0.81 | 0.00 | 0.41 | 11.53 | 289.20 | -10.69 | 66.78 | 0.1987 | 677.0 | 538.6 | |
| 0.00 | 1.34 | 0.00 | 0.68 | 13.92 | 288.94 | -10.95 | 57.02 | 0.2208 | 978.0 | 794.5 | |
| 0.00 | 1.52 | 0.00 | 0.78 | 14.09 | 288.04 | -11.85 | 58.34 | 0.2351 | 931.0 | 692.8 | |
| 0.00 | 2.69 | 0.00 | 1.38 | 14.45 | 286.87 | -13.02 | 59.27 | 0.2550 | 763.0 | 691.7 | |
| 0.00 | 1.79 | 0.00 | 0.92 | 16.68 | 286.69 | -13.20 | 52.43 | 0.2772 | 720.0 | 643.0 | |
| 0.00 | 1.34 | 0.00 | 0.69 | 16.55 | 286.31 | -13.58 | 53.56 | 0.2810 | 827.0 | 587.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
