SDO HMI 2011-08-31 01:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 47.18 | 148.04 | 35.12 | 110.22 | -20.10 | 258.27 | -40.52 | 125.21 | 0.7490 | 193.5 | -130.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-31 01:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

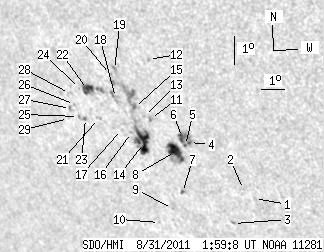

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.07 | 0.00 | 0.77 | -22.21 | 262.38 | -36.41 | 130.43 | 0.7242 | 579.0 | 393.8 | |
| 0.00 | 0.81 | 0.00 | 0.58 | -21.93 | 262.02 | -36.77 | 129.84 | 0.7256 | 699.0 | 553.9 | |
| 0.00 | 1.07 | 0.00 | 0.79 | -23.17 | 261.21 | -37.58 | 130.65 | 0.7413 | -478.0 | -364.6 | |
| 1.25 | 16.12 | 0.91 | 11.70 | -20.47 | 260.23 | -38.56 | 126.91 | 0.7326 | 949.7 | 652.3 | |
| 0.99 | -4.00 | 0.72 | -4.00 | -20.59 | 260.03 | -38.76 | 126.91 | 0.7352 | 777.7 | 999999 | |
| 5.19 | -4.00 | 3.78 | -4.00 | -20.32 | 259.99 | -38.80 | 126.57 | 0.7340 | 782.1 | 999999 | |
| 1.34 | 1.88 | 1.01 | 1.41 | -22.25 | 259.37 | -39.42 | 128.35 | 0.7517 | 585.7 | 226.7 | |
| 13.61 | 24.27 | 10.01 | 17.88 | -20.83 | 259.54 | -39.25 | 126.86 | 0.7414 | 795.2 | 291.1 | |
| 0.00 | 0.63 | 0.00 | 0.48 | -22.85 | 258.74 | -40.06 | 128.61 | 0.7611 | 458.0 | 309.1 | |
| 0.00 | 0.99 | 0.00 | 0.76 | -23.41 | 257.97 | -40.82 | 128.72 | 0.7712 | 338.0 | 343.8 | |
| 0.00 | 1.43 | 0.00 | 1.06 | -19.78 | 258.81 | -39.98 | 125.16 | 0.7418 | 677.0 | 595.9 | |
| 0.00 | 1.25 | 0.00 | 0.90 | -17.77 | 259.30 | -39.49 | 123.09 | 0.7251 | -680.0 | -523.4 | |
| 0.00 | 1.61 | 0.00 | 1.19 | -19.73 | 258.57 | -40.22 | 124.95 | 0.7438 | 453.0 | 360.6 | |
| 14.24 | 31.26 | 10.67 | 23.39 | -20.67 | 258.24 | -40.56 | 125.82 | 0.7525 | 672.1 | 132.4 | |
| 1.34 | 25.44 | 0.99 | 18.81 | -19.46 | 258.23 | -40.56 | 124.42 | 0.7455 | -362.9 | -396.9 | |
| 0.00 | 1.16 | 0.00 | 0.88 | -20.33 | 257.83 | -40.96 | 125.18 | 0.7543 | -291.0 | -275.3 | |
| 0.00 | 0.90 | 0.00 | 0.68 | -20.27 | 257.42 | -41.37 | 124.85 | 0.7578 | -338.0 | -333.1 | |
| 0.00 | 5.82 | 0.00 | 4.35 | -19.19 | 257.51 | -41.28 | 123.65 | 0.7508 | -576.0 | -506.3 | |
| 0.00 | 3.58 | 0.00 | 2.64 | -18.23 | 257.75 | -41.04 | 122.67 | 0.7432 | -814.0 | -689.5 | |
| 0.00 | 0.81 | 0.00 | 0.60 | -18.42 | 257.53 | -41.26 | 122.76 | 0.7464 | -807.0 | -680.2 | |
| 0.00 | 1.79 | 0.00 | 1.37 | -19.98 | 256.52 | -42.27 | 123.97 | 0.7645 | -657.0 | -559.9 | |
| 7.88 | 15.94 | 5.99 | 12.08 | -19.02 | 256.35 | -42.44 | 122.76 | 0.7609 | -731.6 | -617.0 | |
| 1.34 | 1.52 | 1.04 | 1.18 | -20.03 | 255.93 | -42.86 | 123.68 | 0.7703 | -603.1 | -783.0 | |
| 0.00 | 1.07 | 0.00 | 0.82 | -19.02 | 256.00 | -42.79 | 122.56 | 0.7642 | -357.0 | -404.1 | |
| 0.00 | 1.34 | 0.00 | 1.04 | -19.99 | 255.64 | -43.15 | 123.47 | 0.7728 | -471.0 | -368.4 | |
| 0.00 | 0.81 | 0.00 | 0.62 | -19.59 | 255.59 | -43.20 | 122.98 | 0.7710 | -419.0 | -443.0 | |
| 0.00 | 2.24 | 0.00 | 1.74 | -19.75 | 255.36 | -43.43 | 123.03 | 0.7740 | -536.0 | -454.1 | |
| 0.00 | 2.51 | 0.00 | 1.94 | -19.23 | 255.49 | -43.30 | 122.51 | 0.7701 | -517.0 | -406.4 | |
| 0.00 | 0.72 | 0.00 | 0.56 | -20.10 | 255.15 | -43.64 | 123.31 | 0.7778 | -331.0 | -268.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
