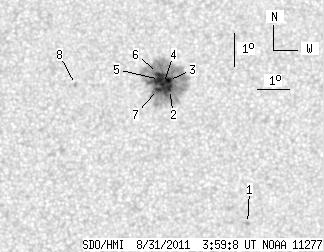

SDO HMI 2011-08-31 03:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.14 | 150.32 | 5.11 | 75.97 | 18.38 | 299.62 | 1.92 | 350.60 | 0.1980 | -1220.3 | -567.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-31 03:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.70 | 0.00 | 0.85 | 14.06 | 302.24 | 4.55 | 327.40 | 0.1433 | -997.0 | -797.1 | |
| 1.08 | 147.10 | 0.54 | 74.35 | 18.19 | 299.85 | 2.15 | 349.41 | 0.1952 | -1334.4 | -561.9 | |
| 2.60 | -2.00 | 1.31 | -2.00 | 18.46 | 299.82 | 2.12 | 349.81 | 0.1998 | -1268.5 | 999999 | |
| 0.63 | -2.00 | 0.32 | -2.00 | 18.37 | 299.66 | 1.96 | 350.49 | 0.1977 | -1632.7 | 999999 | |
| 2.96 | -2.00 | 1.49 | -2.00 | 18.50 | 299.53 | 1.84 | 351.19 | 0.1995 | -1263.5 | 999999 | |
| 0.90 | -2.00 | 0.45 | -2.00 | 18.71 | 299.47 | 1.78 | 351.65 | 0.2030 | -1038.0 | 999999 | |
| 1.97 | -2.00 | 1.00 | -2.00 | 18.19 | 299.46 | 1.77 | 351.26 | 0.1941 | -1170.9 | 999999 | |
| 0.00 | 1.52 | 0.00 | 0.77 | 18.34 | 296.85 | -0.84 | 4.12 | 0.1950 | -1024.0 | -810.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
