SDO HMI 2011-08-31 03:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.79 | 283.34 | 22.46 | 142.18 | 13.90 | 291.50 | -6.20 | 41.68 | 0.1588 | -505.4 | -298.5 | |
|
previous
or next observation for the same group /

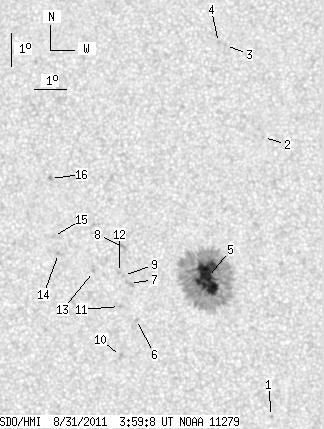

back to the solar disc SDO HMI 2011-08-31 03:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.25 | 0.00 | 0.62 | 9.64 | 293.78 | -3.91 | 57.36 | 0.0803 | -926.0 | -660.2 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 18.14 | 293.38 | -4.32 | 20.58 | 0.2044 | 783.0 | 598.3 | |
| 0.00 | 1.34 | 0.00 | 0.69 | 20.98 | 292.06 | -5.63 | 20.96 | 0.2571 | 858.0 | 609.7 | |
| 0.00 | 1.16 | 0.00 | 0.60 | 21.07 | 291.83 | -5.86 | 21.60 | 0.2600 | 764.0 | 638.3 | |
| 44.79 | 257.02 | 22.46 | 128.87 | 13.83 | 291.72 | -5.98 | 40.95 | 0.1549 | -1355.0 | -415.0 | |
| 0.00 | 1.25 | 0.00 | 0.63 | 12.52 | 289.53 | -8.16 | 55.76 | 0.1684 | 889.0 | 693.3 | |
| 0.00 | 4.57 | 0.00 | 2.30 | 13.61 | 289.28 | -8.42 | 51.46 | 0.1827 | 975.0 | 712.6 | |
| 0.00 | 3.40 | 0.00 | 1.72 | 14.71 | 289.05 | -8.65 | 47.70 | 0.1975 | 873.0 | 699.4 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 13.85 | 289.08 | -8.62 | 51.05 | 0.1879 | 845.0 | 681.4 | |
| 0.00 | 2.60 | 0.00 | 1.30 | 11.39 | 289.07 | -8.63 | 63.04 | 0.1657 | 976.0 | 711.5 | |
| 0.00 | 1.16 | 0.00 | 0.59 | 12.91 | 288.99 | -8.71 | 55.56 | 0.1797 | 814.0 | 631.5 | |
| 0.00 | 1.52 | 0.00 | 0.77 | 13.94 | 288.95 | -8.75 | 51.08 | 0.1905 | 987.0 | 718.9 | |
| 0.00 | 0.81 | 0.00 | 0.41 | 13.96 | 288.13 | -9.57 | 53.42 | 0.2018 | 929.0 | 776.2 | |
| 0.00 | 2.15 | 0.00 | 1.09 | 14.48 | 286.99 | -10.70 | 54.30 | 0.2224 | 873.0 | 687.3 | |
| 0.00 | 1.61 | 0.00 | 0.82 | 15.00 | 286.81 | -10.89 | 52.86 | 0.2299 | 926.0 | 708.8 | |
| 0.00 | 1.34 | 0.00 | 0.69 | 16.77 | 286.61 | -11.08 | 47.47 | 0.2508 | 935.0 | 807.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
