SDO HMI 2011-08-31 03:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41.21 | 180.27 | 30.22 | 132.04 | -20.21 | 258.28 | -39.41 | 126.05 | 0.7392 | 166.3 | -74.8 | |
|
previous
or next observation for the same group /

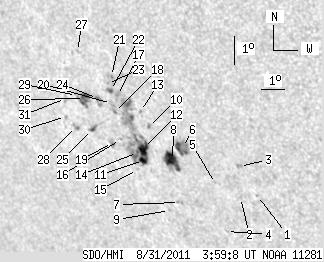

back to the solar disc SDO HMI 2011-08-31 03:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.69 | -21.76 | 262.70 | -35.00 | 130.99 | 0.7080 | 584.0 | 580.2 | |
| 0.00 | 0.63 | 0.00 | 0.44 | -21.88 | 261.98 | -35.72 | 130.58 | 0.7155 | 704.0 | 576.0 | |
| 0.00 | 2.51 | 0.00 | 1.75 | -20.80 | 262.24 | -35.45 | 129.54 | 0.7054 | 712.0 | 613.5 | |
| 0.00 | 0.54 | 0.00 | 0.39 | -23.13 | 261.03 | -36.67 | 131.27 | 0.7330 | -496.0 | -417.5 | |
| 0.00 | 0.72 | 0.00 | 0.51 | -21.47 | 261.09 | -36.61 | 129.45 | 0.7209 | 411.0 | 336.8 | |
| 0.00 | 15.23 | 0.00 | 10.88 | -20.33 | 260.07 | -37.62 | 127.39 | 0.7228 | 873.0 | 739.6 | |
| 0.00 | 2.06 | 0.00 | 1.52 | -22.26 | 259.36 | -38.34 | 129.11 | 0.7421 | 701.0 | 550.7 | |
| 16.04 | 22.75 | 11.61 | 16.48 | -20.81 | 259.52 | -38.17 | 127.57 | 0.7312 | 775.3 | 273.7 | |
| 0.00 | 0.72 | 0.00 | 0.53 | -22.58 | 258.83 | -38.86 | 129.11 | 0.7489 | 527.0 | 441.9 | |
| 0.00 | 1.79 | 0.00 | 1.29 | -19.72 | 258.85 | -38.84 | 125.84 | 0.7306 | 733.0 | 627.3 | |
| 3.58 | 76.33 | 2.64 | 55.99 | -20.92 | 258.28 | -39.41 | 126.85 | 0.7434 | 683.8 | -103.9 | |
| 9.05 | -11.00 | 6.64 | -11.00 | -20.50 | 258.41 | -39.28 | 126.45 | 0.7396 | 822.6 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.84 | -19.23 | 258.66 | -39.03 | 125.14 | 0.7294 | 600.0 | 500.3 | |
| 0.72 | -11.00 | 0.53 | -11.00 | -20.66 | 258.11 | -39.59 | 126.44 | 0.7435 | 267.1 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.53 | -21.26 | 257.92 | -39.78 | 126.99 | 0.7488 | 410.0 | 326.6 | |
| 0.00 | 1.08 | 0.00 | 0.80 | -20.27 | 257.51 | -40.18 | 125.60 | 0.7467 | -597.0 | -386.8 | |
| 0.00 | 5.02 | 0.00 | 3.65 | -18.77 | 257.84 | -39.86 | 124.05 | 0.7347 | -593.0 | -531.6 | |
| 0.00 | 2.15 | 0.00 | 1.58 | -19.33 | 257.55 | -40.15 | 124.52 | 0.7408 | 18.0 | -50.0 | |
| 0.00 | 4.03 | 0.00 | 3.01 | -20.41 | 257.13 | -40.56 | 125.51 | 0.7511 | -484.0 | -502.5 | |
| 0.00 | 3.05 | 0.00 | 2.23 | -19.06 | 257.50 | -40.19 | 124.18 | 0.7397 | -750.0 | -593.2 | |
| 0.00 | 1.34 | 0.00 | 0.97 | -18.14 | 257.76 | -39.93 | 123.26 | 0.7317 | -747.0 | -699.4 | |
| 1.43 | 3.14 | 1.05 | 2.29 | -18.62 | 257.59 | -40.11 | 123.72 | 0.7363 | -813.9 | -751.0 | |
| 0.00 | 0.99 | 0.00 | 0.72 | -18.39 | 257.52 | -40.17 | 123.41 | 0.7355 | -836.0 | -725.9 | |
| 1.70 | 6.09 | 1.26 | 4.50 | -18.94 | 256.94 | -40.75 | 123.69 | 0.7444 | -680.3 | -433.1 | |
| 0.90 | 2.87 | 0.67 | 2.16 | -20.03 | 256.39 | -41.30 | 124.62 | 0.7558 | -808.5 | -751.8 | |
| 7.79 | 13.17 | 5.82 | 9.83 | -18.99 | 256.38 | -41.32 | 123.40 | 0.7501 | -757.7 | -621.0 | |
| 0.00 | 1.25 | 0.00 | 0.92 | -17.42 | 256.54 | -41.16 | 121.63 | 0.7398 | -608.0 | -553.0 | |
| 0.00 | 3.40 | 0.00 | 2.59 | -19.99 | 255.71 | -41.98 | 124.16 | 0.7619 | -410.0 | -479.4 | |
| 0.00 | 2.33 | 0.00 | 1.75 | -18.92 | 256.05 | -41.64 | 123.12 | 0.7528 | -610.0 | -492.0 | |
| 0.00 | 1.16 | 0.00 | 0.89 | -19.69 | 255.33 | -42.36 | 123.58 | 0.7638 | -548.0 | -483.8 | |
| 0.00 | 3.05 | 0.00 | 2.31 | -19.07 | 255.53 | -42.16 | 122.98 | 0.7585 | -492.0 | -457.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
